25mm 38mm GFRP Fiberglass Pultruded FRP Floor Grating for Decking Walkway
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Hongji |
| Model Number: | pultruded grating |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 kilograms |
|---|---|
| Price: | $2.50/kilograms >=1000 kilograms |
|
Detail Information |
|||
| Application: | Frp Floor Grating | Surface Treatment: | Anti-slip |
|---|---|---|---|
| Technique: | Pultruded | Processing Service: | Cutting |
| Material: | FRP | Open Area: | 40% 80% |
Product Description
Products Description
Pultruded FRP (Fiber Reinforced Plastic) floor grating is a type of grating made from reinforced plastic materials. Here are some details about this product:
1. Material: Pultruded FRP grating is typically made from a combination of thermosetting resins, such as polyester, vinyl ester, or epoxy, reinforced with fiberglass rovings or mats. This combination results in a strong and durable material that is resistant to corrosion, chemicals, and extreme weather conditions.
1. Material: Pultruded FRP grating is typically made from a combination of thermosetting resins, such as polyester, vinyl ester, or epoxy, reinforced with fiberglass rovings or mats. This combination results in a strong and durable material that is resistant to corrosion, chemicals, and extreme weather conditions.
2. Manufacturing Process: The pultrusion process involves pulling continuous fibers (usually fiberglass) through a resin bath to impregnate them with the chosen resin system. The impregnated fibers are then pulled through a heated die, where the resin is cured and the desired shape is formed. This process results in a strong, uniform, and corrosion-resistant grating with high strength-to-weight ratio.
Pultruded frp floor grating instruction:

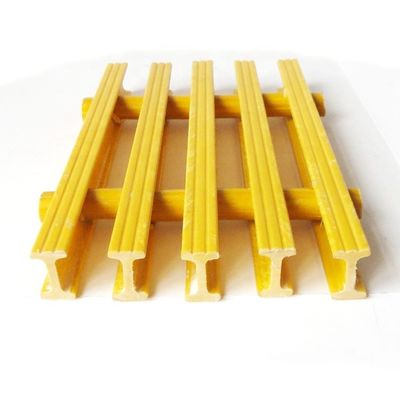

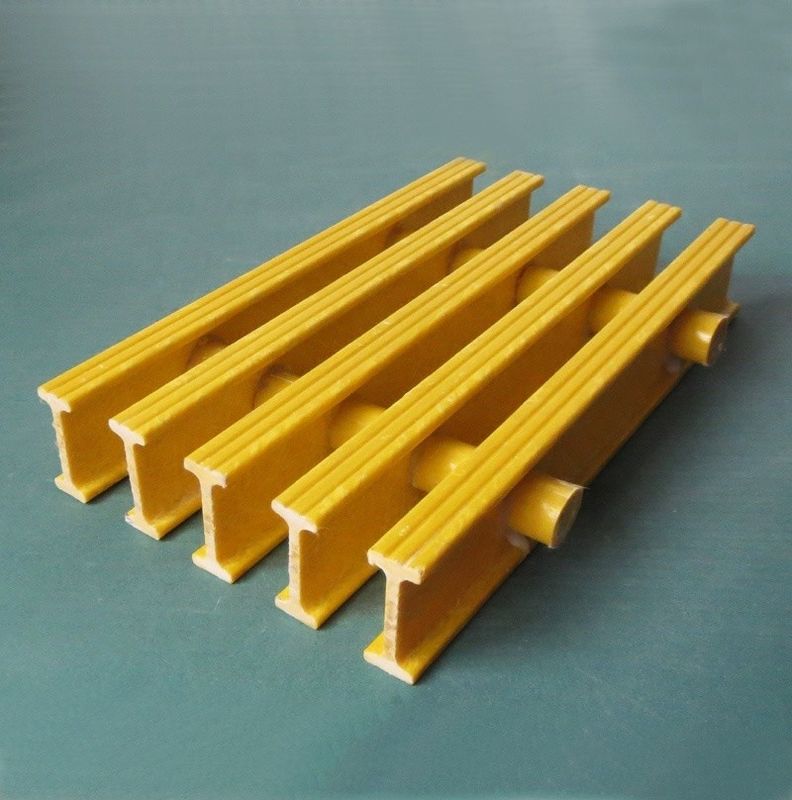

1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
Pultruded FRP grating specification list
the open area of pultruded FRP grating dimensions could be adjusted as requirement, below is popular size list
|
Art No.
|
“I”high A
(mm) |
“I"Top width B
(mm) |
"I" bottom width D (mm)
|
clearance C
(mm) |
open area
|
approx weight
(kg/sqm) |
|
5025
|
25
|
30
|
30
|
30
|
50
|
10
|
|
4025
|
25
|
15
|
15
|
10
|
40
|
13.8
|
|
5025
|
25
|
15
|
15
|
15
|
50
|
11.9
|
|
6025
|
25
|
15
|
15
|
23
|
60
|
10
|
|
4038
|
38
|
15
|
15
|
10
|
40
|
20.5
|
|
5038
|
38
|
15
|
15
|
15
|
50
|
17.8
|
|
6038
|
38
|
15
|
15
|
23
|
60
|
14.8
|
|
6038ii
|
38
|
15
|
15
|
23
|
60
|
19.2
|
|
4040
|
40
|
40
|
20
|
27
|
40
|
19.5
|
|
5040
|
40
|
40
|
20
|
40
|
50
|
17
|
|
6040
|
40
|
40
|
20
|
60
|
60
|
14
|
|
4040i
|
40
|
30
|
30
|
20
|
40
|
14
|
|
5040i
|
40
|
30
|
30
|
30
|
50
|
12
|
|
6040i
|
40
|
30
|
30
|
45
|
60
|
10
|
|
6050
|
50
|
15
|
15
|
23
|
60
|
16
|
|
5050
|
50
|
15
|
15
|
15
|
50
|
22.5
|
|
4050
|
50
|
15
|
15
|
10
|
40
|
25.5
|
|
4058
|
58
|
15
|
15
|
10
|
40
|
32
|
|
5058
|
58
|
15
|
15
|
15
|
50
|
27
|
|
6058
|
58
|
15
|
15
|
23
|
60
|
22
|
|
4065
|
65
|
30
|
30
|
20
|
40
|
17
|
|
5065
|
65
|
30
|
30
|
30
|
50
|
15
|
|
6060
|
60
|
30
|
30
|
45
|
60
|
12
|
Customization:
Pultruded FRP grating is available in various sizes, shapes, and configurations to suit specific application requirements. This includes different mesh sizes, panel sizes, and surface patterns.
Grating clamps are available.
Fiberglass pultruded grating advantages:
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.
Pultruded FRP structural grating commonly used in industrial facilities, chemical plants, marine engineering, bridges, docks, and other areas.
Its excellent characteristics make it suitable for various harsh environments, capable of bearing heavy loads and providing a durable lifespan.
