Product Details:

Place of Origin: Henan, China
Brand Name: hongji frp
Model Number: frp grating sheet

Payment & Shipping Terms:

Minimum Order Quantity: 1000 kilograms
Price: $2.50/kilograms >=1000 kilograms
Get Best Price Contact Now

Detail Information

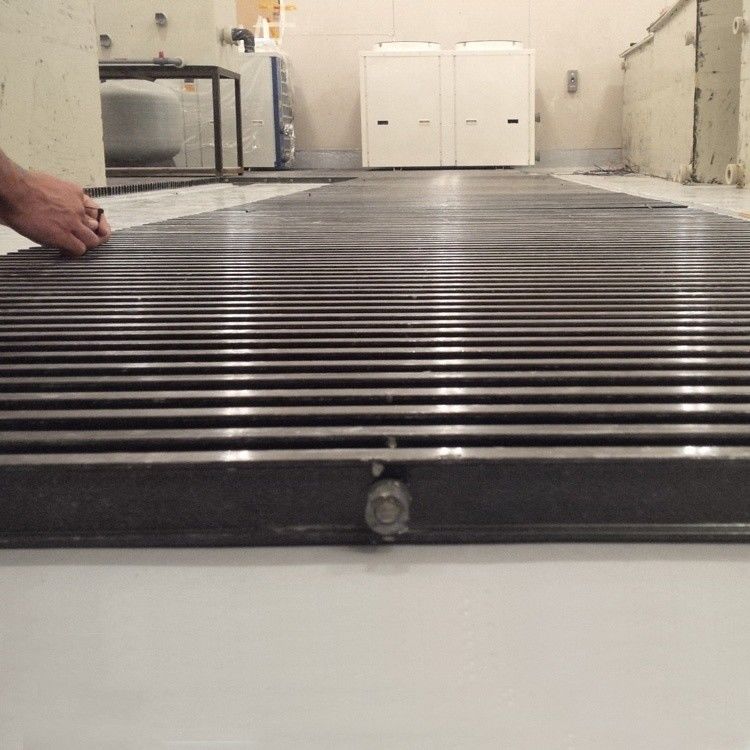

Application: Walkway, Ceiling Grating, Fence, Barriers Surface Treatment: Anti-slip
Technique: Pultruded Processing Service: Cutting
Material: FRP Open Area: 40% 80%

Product Description

Products Description
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 0
Anti-slip frp grating instruction:

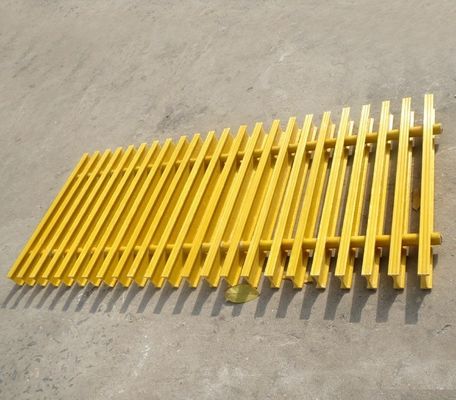

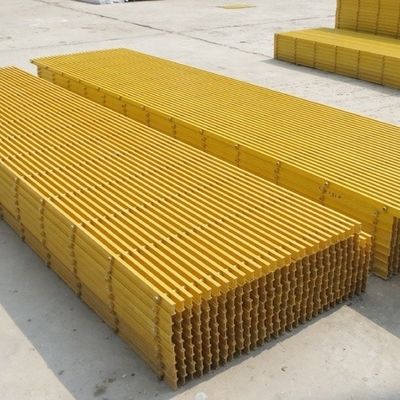

1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 1
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 2
Pultruded FRP (Fiber Reinforced Plastic) grating is a type of grating made from reinforced plastic materials. Here are some details about this product:
1. Material: Pultruded FRP grating is typically made from a combination of thermosetting resins, such as polyester, vinyl ester, or epoxy, reinforced with fiberglass rovings or mats. This combination results in a strong and durable material that is resistant to corrosion, chemicals, and extreme weather conditions.
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 3
2. Manufacturing Process: The pultrusion process involves pulling continuous fibers (usually fiberglass) through a resin bath to impregnate them with the chosen resin system. The impregnated fibers are then pulled through a heated die, where the resin is cured and the desired shape is formed. This process results in a strong, uniform, and corrosion-resistant grating with high strength-to-weight ratio.
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 4
Pultruded FRP grating specification list
the open area of pultruded FRP grating dimensions could be adjusted as requirement, below is popular size list
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 5
Art No.
“I”high A
(mm)
“I"Top width B
(mm)
"I" bottom width D (mm)
clearance C
(mm)
open area
approx weight
(kg/sqm）
5025
25
30
30
30
50
10
4025
25
15
15
10
40
13.8
5025
25
15
15
15
50
11.9
6025
25
15
15
23
60
10
4038
38
15
15
10
40
20.5
5038
38
15
15
15
50
17.8
6038
38
15
15
23
60
14.8
6038ii
38
15
15
23
60
19.2
4040
40
40
20
27
40
19.5
5040
40
40
20
40
50
17
6040
40
40
20
60
60
14
4040i
40
30
30
20
40
14
5040i
40
30
30
30
50
12
6040i
40
30
30
45
60
10
6050
50
15
15
23
60
16
5050
50
15
15
15
50
22.5
4050
50
15
15
10
40
25.5
4058
58
15
15
10
40
32
5058
58
15
15
15
50
27
6058
58
15
15
23
60
22
4065
65
30
30
20
40
17
5065
65
30
30
30
50
15
6060
60
30
30
45
60
12
Customization:
Pultruded FRP grating is available in various sizes, shapes, and configurations to suit specific application requirements. This includes different mesh sizes, panel sizes, and surface patterns.
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 6
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 7
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 8
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 9
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 10
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 11
Grating clamps are available.
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 12
Fiberglass pultruded grating advantages:
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
 2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
 5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 13
Pultruded FRP structural grating commonly used in industrial facilities, chemical plants, marine engineering, bridges, docks, and other areas.
Its excellent characteristics make it suitable for various harsh environments, capable of bearing heavy loads and providing a durable lifespan.
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 14
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 15
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 16
Related Product
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 17
FRP Handrail/Fence/Guardrail
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 18
FRP Stair Step Ladder With Handrail
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 19
FRP Step Ladders
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 20
FRP Support Beam For Grating Floor
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 21
FRP Structural Profiles
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 22
FRP Molded Grating
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 23
Antislip FRP Decking Strip
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 24
FRP Handrail Fittings
40% 80% Open Area High Strength FRP Grating for Heavy-Duty and High Load Applications 25
FRP Cable Tray
Packing And Shipping
Packing type: pallets, wood carton, etc. also could packing according to customer's requirement.
Shipping： land shipping, air shipping, railway shipping, express delivery(length can't over 2.5m)
