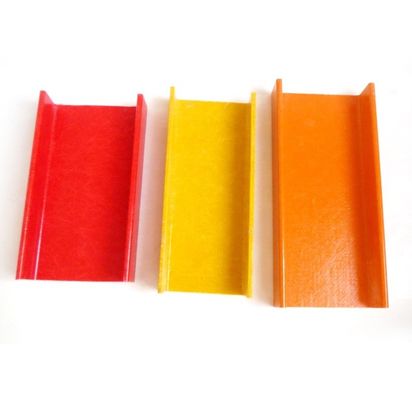

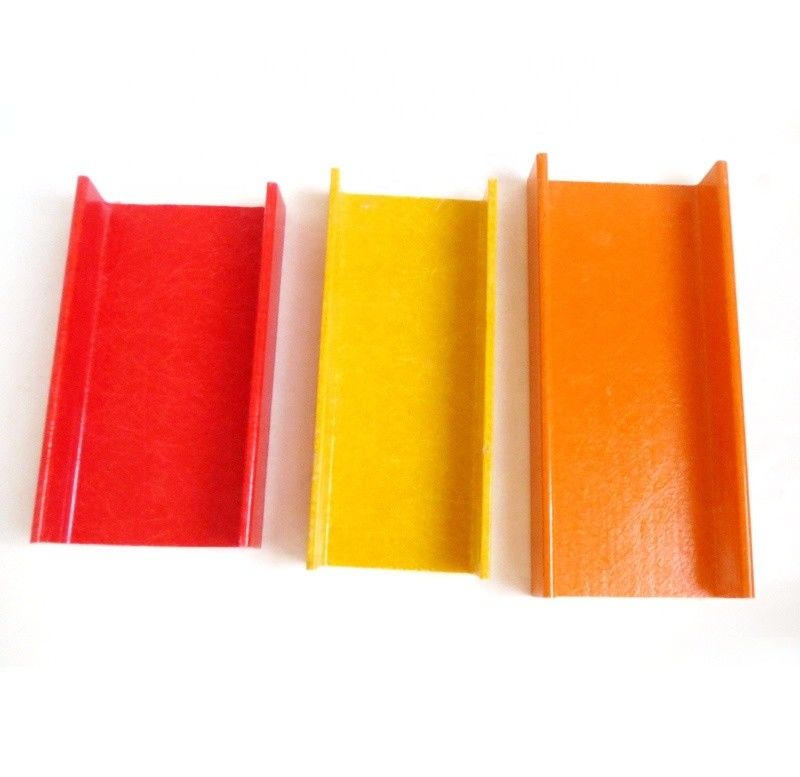

Structural Reinforcement FRP Channel Support Beam Fiberglass GRP Channel Profile Cut as Requirement
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP channel |
| Model Number: | fiberglass c channel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $2.50/meters >=1000 meters |
|
Detail Information |
|||
| Application: | Insulated Ladders | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Color: | As Requirement | ||
Product Description
Product description:
l Raw Materials: o-type resin, ISO resin, vinyl resin.
l Process: Pultrusion, assembly
l Color: no limitation
l Length: no limitation
l Thickness: from 2mm to 50mm
l Diameter: 2mm ~ 50mm & Custom
| FRP Channel(mm) | |||
| 18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 |
| 55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 |
| 63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 |
| 76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 |
| 80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 |
| 84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 100×65×4.6 |
| 110×30×4.6 | 180x50x6 | 180x50x8 | 200×100×4.6 |
| 210×30×4.6 | 300×150×5.6 | 312×50×5.6 | |
2. Lightweight and High Strength: Fiberglass is a lightweight yet high-strength material, providing sufficient strength while reducing the self-weight of structures, making it easy to transport and install.
3. Insulation Performance: Fiberglass is an insulating material, non-conductive to electricity. Therefore, channel profiles are suitable for applications requiring electrical insulation, such as maintenance of electrical equipment and cable supports.
4. Abrasion Resistance: Fiberglass typically has good abrasion resistance, maintaining a smooth and stable surface during extended use.
5. UV Resistance: Fiberglass channel profiles have strong resistance to UV radiation, maintaining color stability over prolonged outdoor exposure.
6. Customization: Fiberglass channel profiles can be customized to meet specific project requirements, including different sizes, shapes, and colors.
7. Easy Installation and Maintenance: Due to their lightweight nature and resistance to corrosion, channel profiles are easy to install and maintain, reducing project costs and time.
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc.
| Other names | F |
| Resin type | Ortho-type resin, ISO resin, Vinyl resin and Phenolic resin, advise us the tube application or work environment, we will recommend proper raw materials to customer |
| Colors | white, grey, yellow, red and orange are popular, could make as requirement |
| Lengths | 0.2m to 11.6m, made as customer's requirement |
| MOQ | 1000 meters or 1000kgs. |
| Lead time | if order smaller than 5000 meters, lead time is 7 to 15 days |
| Processing | Cutting, drilling, log painting, etc |
| Samples | Small quantity samples are free, customer need afford sample shipping cost |
| Goods warranty | 1 to 2 years, different product warranty is not total same. |
| Shipping | FRP profiles max length for 20' container is 5.85m and 11.6 for 40' container, could contact us for shipping cost checking |
