Technique Pultrusion Fiberglass GFRP C Channel for 30mm Board Edge Protection/Cover
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP U channel |
| Model Number: | fiberglass c channel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $2.50/meters >=1000 meters |
|
Detail Information |
|||
| Application: | Insulated Ladders | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Color: | As Requirement | ||
Product Description

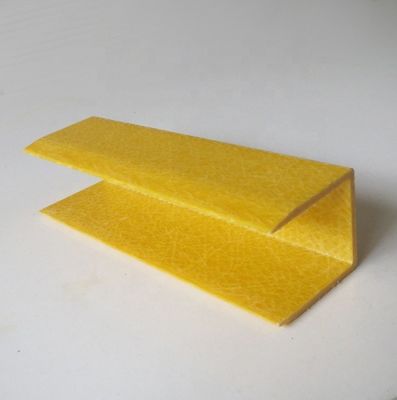

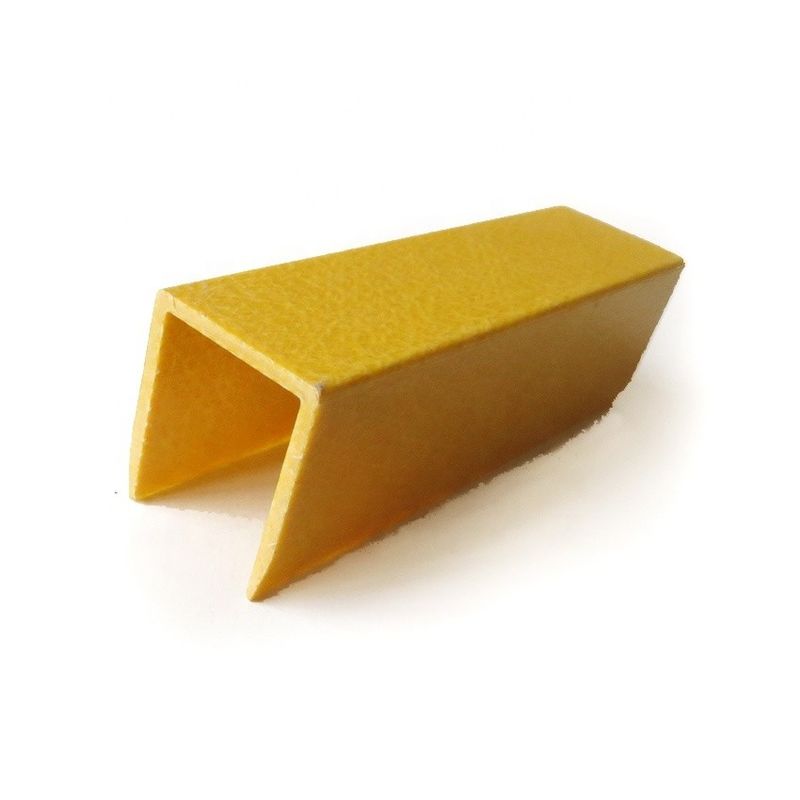

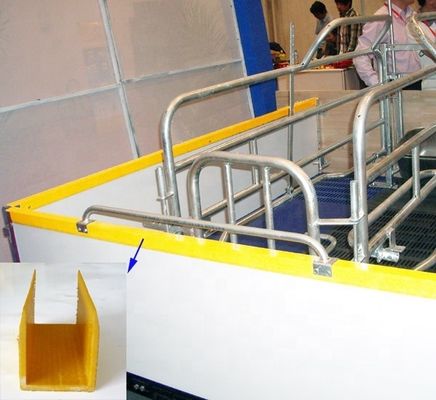

FRP u channel 45x39mm, suitable for 30mm board edge protection
Product description:
l Raw Materials: o-type resin, ISO resin, vinyl resin.
l Process: Pultrusion, assembly
l Color: no limitation
l Length: no limitation
l Thickness: from 2mm to 50mm
l Diameter: 2mm ~ 50mm & Custom
| FRP Channel(mm) | |||
| 18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 |
| 55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 |
| 63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 |
| 76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 |
| 80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 |
| 84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 100×65×4.6 |
| 110×30×4.6 | 180x50x6 | 180x50x8 | 200×100×4.6 |
| 210×30×4.6 | 300×150×5.6 | 312×50×5.6 | |
2. Lightweight and High Strength: Fiberglass is a lightweight yet high-strength material, providing sufficient strength while reducing the self-weight of structures, making it easy to transport and install.
3. Insulation Performance: Fiberglass is an insulating material, non-conductive to electricity. Therefore, channel profiles are suitable for applications requiring electrical insulation, such as maintenance of electrical equipment and cable supports.
4. Abrasion Resistance: Fiberglass typically has good abrasion resistance, maintaining a smooth and stable surface during extended use.
5. UV Resistance: Fiberglass channel profiles have strong resistance to UV radiation, maintaining color stability over prolonged outdoor exposure.
6. Customization: Fiberglass channel profiles can be customized to meet specific project requirements, including different sizes, shapes, and colors.
7. Easy Installation and Maintenance: Due to their lightweight nature and resistance to corrosion, channel profiles are easy to install and maintain, reducing project costs and time.
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc.
| Other names | FRP U channel, fiberglass U channel, GRP U channel, 30mm board edge cover |
| Resin type | Ortho-type resin, ISO resin, Vinyl resin and Phenolic resin, advise us the tube application or work environment, we will recommend proper raw materials to customer |
| Colors | white, grey, yellow, red and orange are popular, could make as requirement |
| Lengths | 0.2m to 11.6m, made as customer's requirement |
| MOQ | 1000 meters or 1000kgs. |
| Lead time | if order smaller than 5000 meters, lead time is 7 to 15 days |
| Processing | Cutting, drilling, log painting, etc |
| Samples | Small quantity samples are free, customer need afford sample shipping cost |
| Goods warranty | 1 to 2 years, different product warranty is not total same. |
| Shipping | FRP profiles max length for 20' container is 5.85m and 11.6 for 40' container, could contact us for shipping cost checking |
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer satisfaction first, welcome contact us.
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
