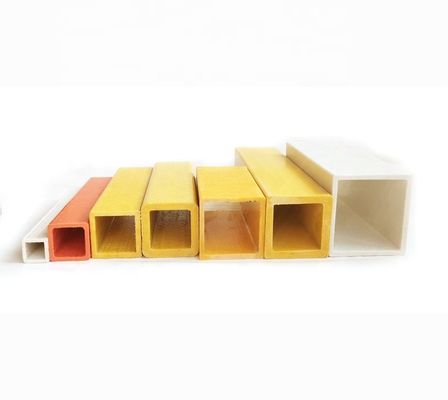

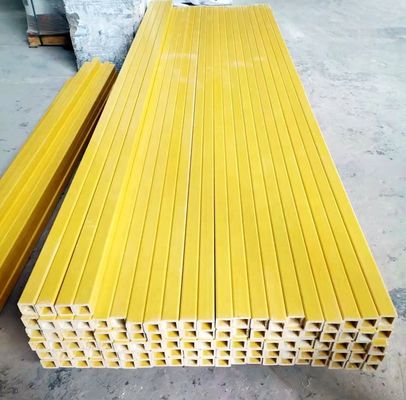

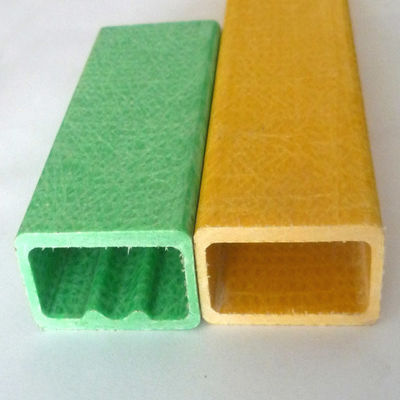

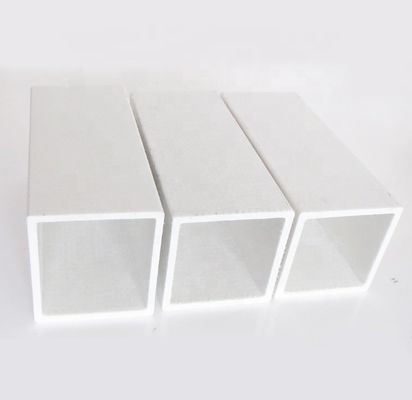

Cutting Service Smooth 16mm to 50mm FRP Square Tube Profiles for Insulated Fence Post
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP PROFILE |
| Model Number: | fiberglass reinforced plastic profiles |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $2.50/meters >=1000 meters |
|
Detail Information |
|||
| Application: | Structures | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Color: | As Requirement | ||
Product Description
Products Description
Standard FRP profiles size list | ||||||
玻纤棒frp rod | ||||||
6.9mm | 7.3mm | 7.9mm | 8.5mm | |||
9.5mm | 10mm | 11mm | 12mm | |||
12.7mm | 16mm | 18mm | 25mm | |||
玻璃钢圆管frp round tube | ||||||
18x11mm | 25x2mm | 30x3mm | 30x2.4mm | |||
30x4mm | 40x3mm | 40x5mm | 45x3mm | |||
50x5mm | 50x4mm | 50x2.5mm | 51x3mm | |||
64×3.5 mm | 64×7.2mm | 76×6.4 mm | 89×3.2 mm | |||
89×5mm | 89×6.4 mm | 99×5 mm | 100×6.4mm | |||
114×3.2 mm | 114×5 mm | 114×6.4mm | 114×9.5mm | |||
150×3.2 mm | 150×5.4mm | 150×6.4 mm | 150×9.5 mm | |||
玻璃钢矩形管rectangular tube | ||||||
19X2.6mm | 20x13x2.2mm | 24.5x16x2.2mm | 35x22x3mm | |||
30x20x2x2.25mm | 30x20x2.5mm | 38×4mm | 50x30x4mm | |||
50x50x4mm | 60x32x3.5mm | 64x26x3.5mm | 65x31x4mm | |||
67x30x3mm | 65x62x4mm | 67x65x4mm | 73x65x4mm | |||
76x51x4mm | 110×50×4.5×4mm | |||||
玻璃钢槽钢Channel(mm) | ||||||
18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 | |||
55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 | |||
63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 | |||
76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 | |||
80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 | |||
84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 100×65×4.6 | |||
110×30×4.6 | 180x50x6 | 180x50x8 | 200×100×4.6 | |||
210×30×4.6 | 300×150×5.6 | 312×50×5.6 | ||||
玻璃钢工字钢I beam(mm) | ||||||
19×19×4 | 20x15x3.5 | 25×15×3.5 | 25×30×3.6 | |||
38×15×3.5×4 | 38×15×4.5×5.5 | 40×30×3.6 | 40*40x5 | |||
50x15x4 | 58×15×4.5×5 | 58×15×5×6 | 65×30×3.6 | |||
70×15×4.5×6 | 80×15×4.5×5 | 80×30×4. | 110×50×4 | |||
玻璃钢角钢Angle | ||||||
20x20x2 | 25x25x5mm | 30x25x3 | 40x40x5 | |||
35x30x3mm | 40x60x5 | 42x47x2.3 | 60x60x6 | |||
76x50x6.35 | 150x99x3 | |||||
玻璃钢平板Flat bar/plate | ||||||
30x4 | 40x4 | 43.2x16 | 45×16 | |||
50x3 | 64x6 | 147x3 | 150x4 | |||
254x3.5 | 280x3 | 646x3.5 | 770x3.5 | |||
796x5 | ||||||
D型波纹管 D ripple tube | 圆形波纹管round ripple tube | |||||
40*27*3 | 36*25 | 75*63 | 51*45 | |||
60*27*3 | ||||||

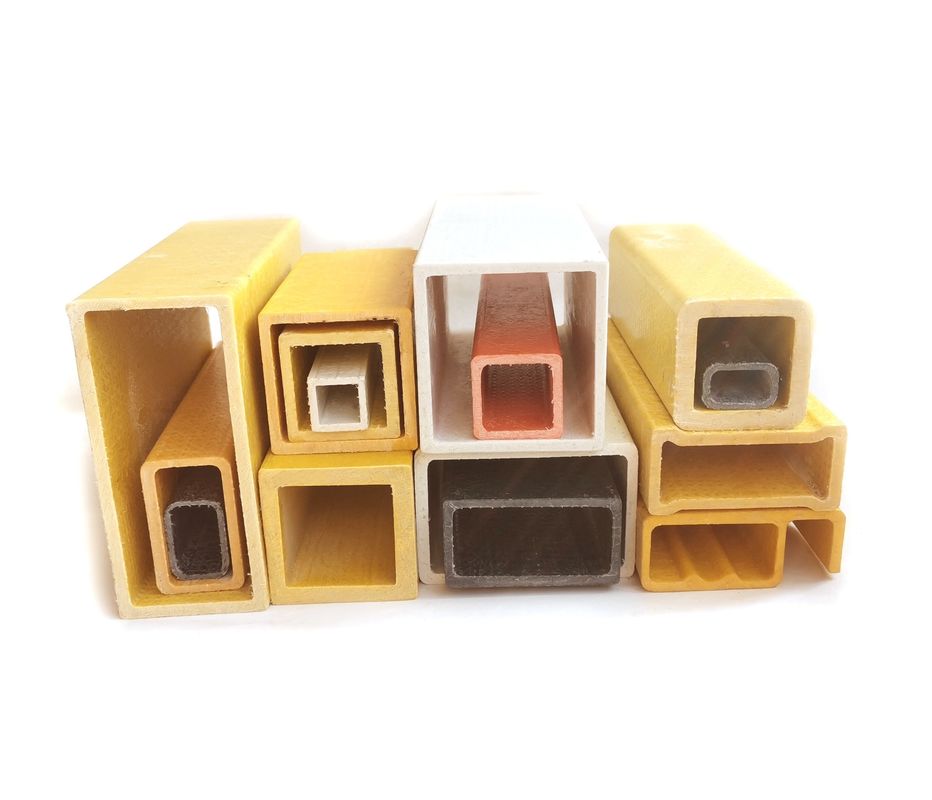

Fiberglass tube profiles simple instruction:
Resin type: Ortho-type resin, ISO resin, vinyl resin
length: 0.5m to 11.6m, cut as requirement
MOQ: 1000 meters
Lead time: 7 to15 days for order less than 5000 meters.
Colors: red, white, grey, yellow, orange, blue, green etc.
Related Product
FRP Handrail/Fence/Guardrail
FRP Stair Step Ladder With Handrail
FRP Step Ladders
FRP Support Beam For Grating Floor
FRP Structural Profiles
FRP Molded Grating
Antislip FRP Decking Strip
FRP Handrail Fittings
FRP Cable Tray
FRP profile advantages
1. Corrosion Resistance: Fiberglass channel profiles exhibit excellent corrosion resistance, withstanding chemical corrosion, humid environments, and other corrosive media, ensuring long-term stability in harsh conditions.2. Lightweight and High Strength: Fiberglass is a lightweight yet high-strength material, providing sufficient strength while reducing the self-weight of structures, making it easy to transport and install.
3. Insulation Performance: Fiberglass is an insulating material, non-conductive to electricity. Therefore, channel profiles are suitable for applications requiring electrical insulation, such as maintenance of electrical equipment and cable supports.
4. Abrasion Resistance: Fiberglass typically has good abrasion resistance, maintaining a smooth and stable surface during extended use.
5. UV Resistance: Fiberglass channel profiles have strong resistance to UV radiation, maintaining color stability over prolonged outdoor exposure.
6. Customization: Fiberglass channel profiles can be customized to meet specific project requirements, including different sizes, shapes, and colors.
7. Easy Installation and Maintenance: Due to their lightweight nature and resistance to corrosion, channel profiles are easy to install and maintain, reducing project costs and time.
FRP profiles Applications:
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
Product packaging
FRP beam packing way have: woven bag, pallets, cartons, Iron frame, etc.
Loading Port: Qingdao, Shanghai
