Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber

Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber

Product Details:

Place of Origin: Henan, China
Brand Name: FRP grating
Model Number: frp Pedestrian Grating

Payment & Shipping Terms:

Minimum Order Quantity: 1000 kilograms
Price: $2.50/kilograms >=1000 kilograms
Packaging Details: pallets
Supply Ability: 80 Ton/Tons per Month
Get Best Price Contact Now

Detail Information
Application: Pedestrian Grating Surface Treatment: Anti-slip
Technique: Pultruded Processing Service: Cutting
Material: FRP Open Area: 40% 80%
Port: Qingdao

Product Description

Product Paramenters
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 0
Pultruded FRP grating specification list
the open area of pultruded FRP grating dimensions could be adjusted as requirement, below is popular size list
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 1
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 2
Art No.
“I”high A
(mm)
“I"Top width B
(mm)
"I" bottom width D (mm)
clearance C
(mm)
open area
approx weight
(kg/sqm）
5025
25
30
30
30
50
10
4025
25
15
15
10
40
13.8
5025
25
15
15
15
50
11.9
6025
25
15
15
23
60
10
4038
38
15
15
10
40
20.5
5038
38
15
15
15
50
17.8
6038
38
15
15
23
60
14.8
6038ii
38
15
15
23
60
19.2
4040
40
40
20
27
40
19.5
5040
40
40
20
40
50
17
6040
40
40
20
60
60
14
4040i
40
30
30
20
40
14
5040i
40
30
30
30
50
12
6040i
40
30
30
45
60
10
6050
50
15
15
23
60
16
5050
50
15
15
15
50
22.5
4050
50
15
15
10
40
25.5
4058
58
15
15
10
40
32
5058
58
15
15
15
50
27
6058
58
15
15
23
60
22
4065
65
30
30
20
40
17
5065
65
30
30
30
50
15
6060
60
30
30
45
60
12
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 3

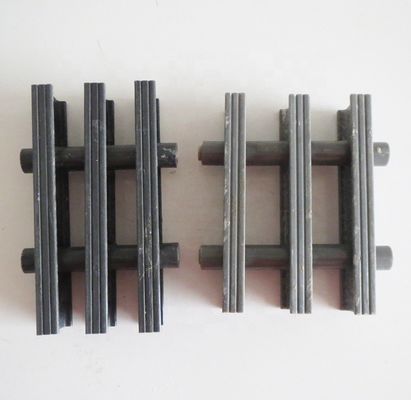

the structure of 4025 FRP grating
the clearance and crossbar distance could be adjusted
if need FRP grating strength, please contact us.
Products Description
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 4
Pultruded fiberglass grating materials are oftentimes used for walkways, sun-screens, decking, docks, ramps, and other public structures
1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
5-Grating clamps are available.
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 5
Fiberglass pultruded grating advantages:
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
 2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
 5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 6
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 7
Pultruded grating superior features compare with molded grating
1. Corrosion resistant: resist most acids, caustics and salts
2. Strength: 2 to 3 times stronger than molded grating, suitable for wide support span, carry great load bearing
3. Impact resistance: The 65% glass to 35% resin ratio of pultruded grating provides twice the stiffness of molded grating, high ultimate strength prevents impact damage

Pultruded grating superior features compare with steel grating
* Corrosion resistant: resists most acid, caustics and salts
* Safety: low electrical conductivity, non-skid surface
* Lightweight: 1/3 the weight of steel
* Easy for transport and filed fabricated
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 8

FRP grating applications:

* FRP Stair and Handrail systems
* Industrial platforms and walkways
* Marine structures
* Food Manufacturing Applications
* Fiberglass Baffle Walls
* Manhole Covers
* Fiberglass Louvers and Ridge Vents
* Ladder systems
* FRP Tank Covers
* Water & Wastewater Containment systems
* Sludge Dry Beds
* Trough Covers
* FRP Enclosures
* FRP ramps and crossovers
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 9
Chemical plant FRP grating trench drain cover
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 10
Chemical plant FRP grating walkway
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 11
FRP grating air conditioner screen
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 12
FRP grating for transformer substation
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 13
FRP grating walkway for ship decking
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 14
FRP grating stair step
Packing And Shipping
Packing type: pallets, wood carton, etc. also could packing according to customer's requirement.
Shipping： land shipping, air shipping, railway shipping, express delivery(length can't over 2.5m)
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 15
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 16
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 17
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 18
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 19
Non-slip FRP Pedestrian Grating with Pultruded Technique and Reinforced Fiber 20
