25mm 38mm 50mm 58mm FRP I Bar Grating for Walkway Pultruded Technique Anti-Corrosion
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP grating |
| Model Number: | pultruded frp grating |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 kilograms |
|---|---|
| Price: | $2.50/kilograms >=1000 kilograms |
|
Detail Information |
|||
| Application: | FRP Grating Walkway | Surface Treatment: | Anti-slip |
|---|---|---|---|
| Technique: | Pultruded | Processing Service: | Cutting |
| Material: | FRP | Open Area: | 40% 80% |
Product Description
Pultruded fiberglass grating materials are oftentimes used for walkways, sun-screens, decking, docks, ramps, and other public structures

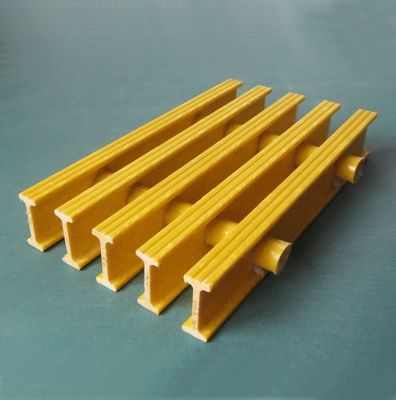

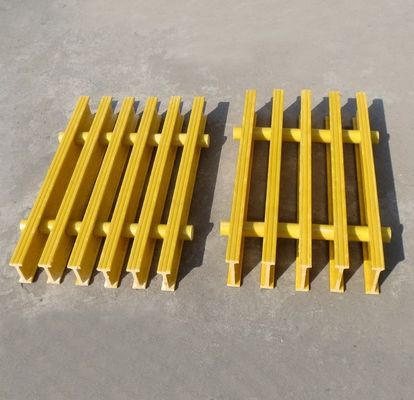

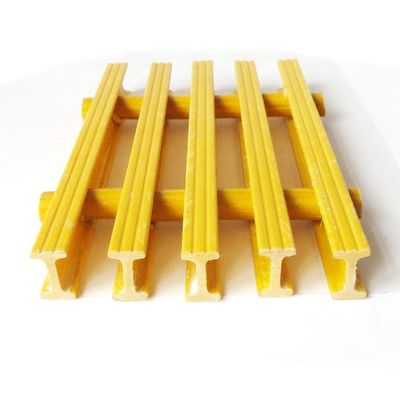

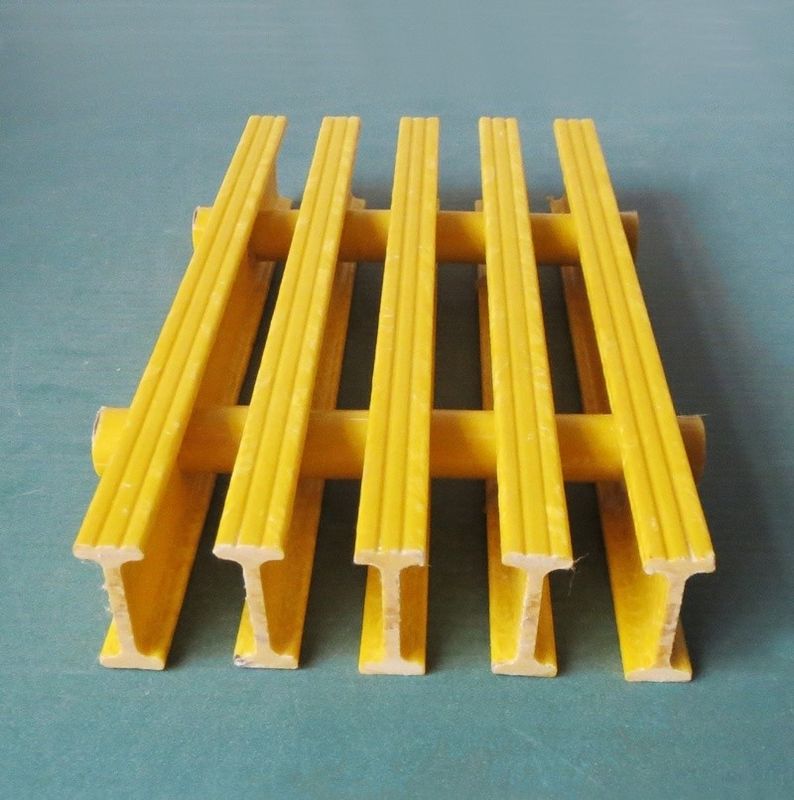

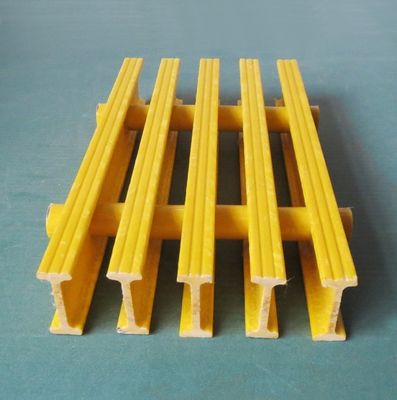

1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
5-Grating clamps are available
FRP grating specification list:
| Art No. | “I”high A (mm) | “I"Top width B (mm) | "I" bottom width D (mm) | clearance C (mm) | open area | approx weight (kg/sqm) |
| 5025 | 25 | 30 | 30 | 30 | 50 | 10 |
| 4025 | 25 | 15 | 15 | 10 | 40 | 13.8 |
| 5025 | 25 | 15 | 15 | 15 | 50 | 11.9 |
| 6025 | 25 | 15 | 15 | 23 | 60 | 10 |
| 4038 | 38 | 15 | 15 | 10 | 40 | 20.5 |
| 5038 | 38 | 15 | 15 | 15 | 50 | 17.8 |
| 6038 | 38 | 15 | 15 | 23 | 60 | 14.8 |
| 6038ii | 38 | 15 | 15 | 23 | 60 | 19.2 |
| 4040 | 40 | 40 | 20 | 27 | 40 | 19.5 |
| 5040 | 40 | 40 | 20 | 40 | 50 | 17 |
| 6040 | 40 | 40 | 20 | 60 | 60 | 14 |
| 4040i | 40 | 30 | 30 | 20 | 40 | 14 |
| 5040i | 40 | 30 | 30 | 30 | 50 | 12 |
| 6040i | 40 | 30 | 30 | 45 | 60 | 10 |
| 6050 | 50 | 15 | 15 | 23 | 60 | 16 |
| 5050 | 50 | 15 | 15 | 15 | 50 | 22.5 |
| 4050 | 50 | 15 | 15 | 10 | 40 | 25.5 |
| 4058 | 58 | 15 | 15 | 10 | 40 | 32 |
| 5058 | 58 | 15 | 15 | 15 | 50 | 27 |
| 6058 | 58 | 15 | 15 | 23 | 60 | 22 |
| 4065 | 65 | 30 | 30 | 20 | 40 | 17 |
| 5065 | 65 | 30 | 30 | 30 | 50 | 15 |
| 6060 | 60 | 30 | 30 | 45 | 60 | 12 |
Fiberglass pultruded grating advantages:
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.
FRP grating applications:
* FRP Stair and Handrail systems
* Industrial platforms and walkways
* Marine structures
* Food Manufacturing Applications
* Fiberglass Baffle Walls
* Manhole Covers
* Fiberglass Louvers and Ridge Vents
* Ladder systems
* FRP Tank Covers
* Water & Wastewater Containment systems
* Sludge Dry Beds
* Trough Covers
* FRP Enclosures
* FRP ramps and crossovers

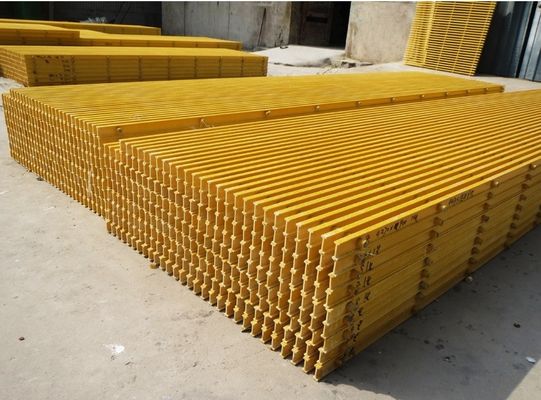

FRP grating packing and shipping:
Packing way: pallets, iron frame, etc
Loading port: Qingdao, Shanghai.
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer satisfaction first, welcome contact us.
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell, offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
1)Other Names: FRP grating, frp grate, fiberglass grating, GFRP grating, FRP grid, frp pultrusion grating
2)
3)Length: 0.2m to 11.6m, made as customer's requirement
4) Processing: cutting, drilling, log painting, etc.

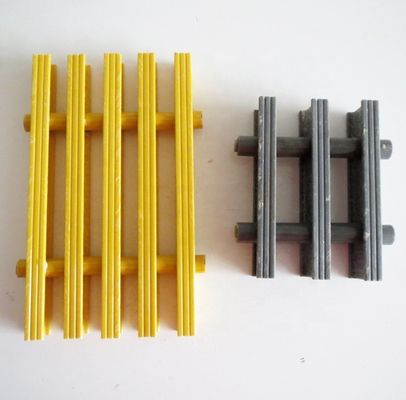

4)Colors: white, grey, yellow, red and orange are popular, could make as requirement.
5) Resin base choosing: Ortho-type resin, ISO resin, Vinyl resin and Phenolic resin, advise us the application or work environment, we will recommend proper raw materials to customer
6)Shipping: FRP pole max length for 20' container is 5.85m, could contact us for shipping cost checking
7) lead time: if order smaller than 5000 meters, lead time is 7 to 15 days
8) MOQ:200 square meters
8) Samples: small quantity samples are free, customer need afford sample shipping cost
9)Goods warranty: 1 to 2 years, different product warranty is not total same.
10) Export business:start from 2007, and export to Australia, America, Canada, UK, Saudi Arab, UAE, Ireland, Indonesia, Russia, Turkey, Brazil, Philippines, etc.
Factory address:No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Office address: No.3 Xuesong Road,High and New Technology Industries Zone of Zhengzhou,China
Contact: Ally Kuo
