Insulated FRP Channel Cable Duct 100mm 200mm 300mm for Secure Wire Tray Organization
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP cable tray |
| Model Number: | fiberglass cable duct |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $5.00/meters >=1000 meters |
|
Detail Information |
|||
| Application: | FRP Cable Tray | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Color: | As Requirement | ||
Product Description
Products Description

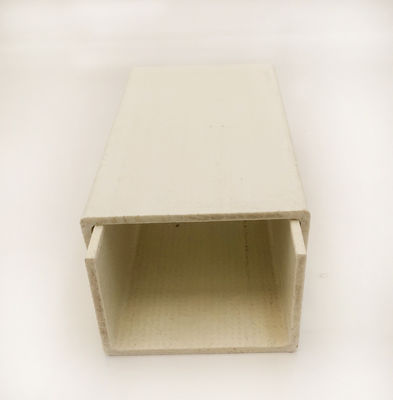

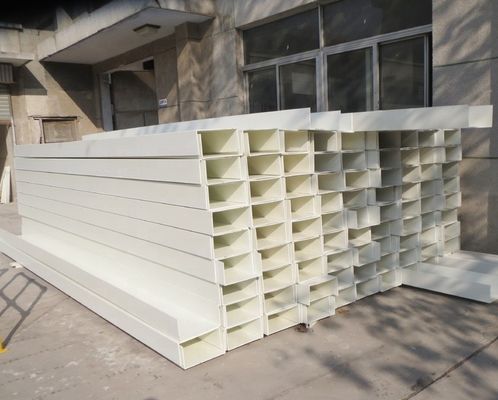

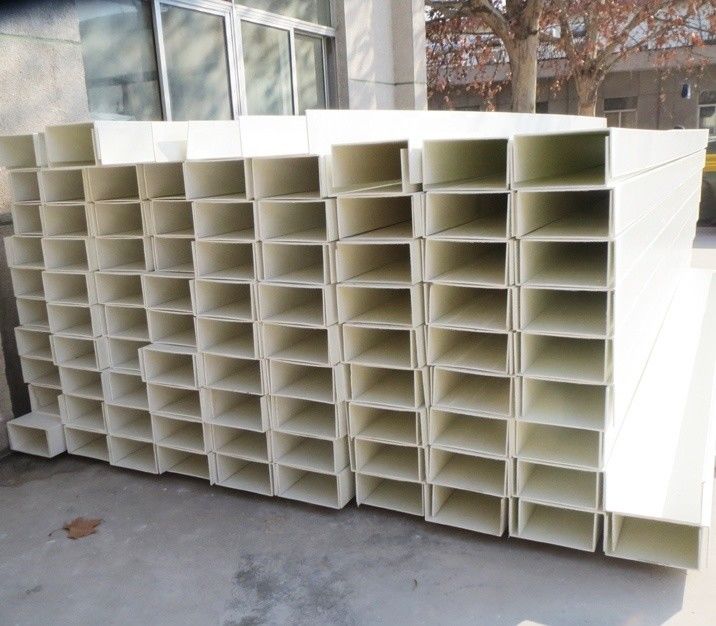

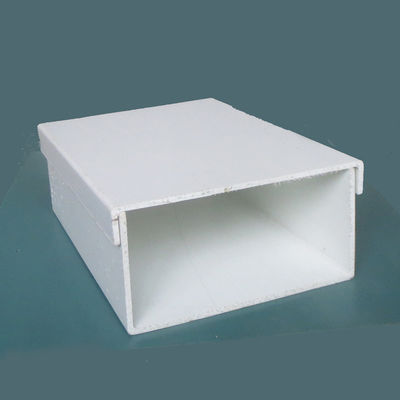

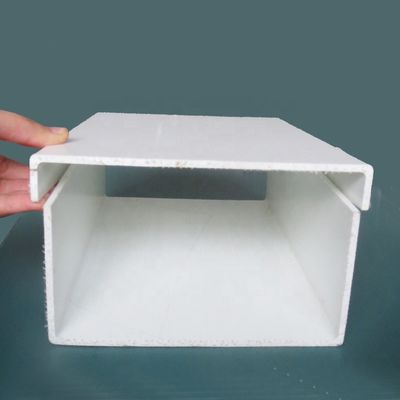

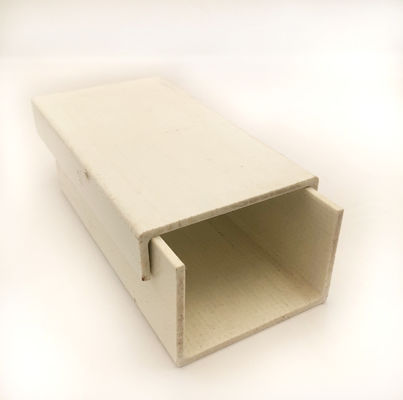

Hongji FRP channel cable tray have 100mm, 200mm, 300mm wide for choosing.
item | part name | Size(mm) | Weight(kg/m) |
100mm cable tray | box | 100×65×4.6 | 1.83 |
cover | 110×30×4.6 | 1.3 | |
200mm cable tray | box | 200×100×4.6 | 3.35 |
cover | 210×30×4.6 | 2.26 | |
300mm cable tray | box | 300×150×5.6 | 6.2 |
cover | 312×50×5.6 | 4.26 |
FRP cable tray accessories
Fiberglass channel profiles simple instruction:
Resin type: Ortho-type resin, ISO resin, vinyl resin
Colors: red, white, grey, yellow, orange, etc.
length: 0.5m to 11.6m, cut as requirement
MOQ: 1000 meters
Lead time: 7 to15 days for order less than 5000 meters.
other FRP channel szie list ( Ax B x t mm) | ||||||
18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 | |||
55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 | |||
63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 | |||
76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 | |||
80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 | |||
84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 180x50x6 | |||
The application of Glass Fiber Reinforced Plastic (GRP) cable trays encompasses various purposes in the fields of engineering and construction, primarily involving the support, protection, and routing of cables. Here are some common uses of GRP cable trays:
1. Cable Support:
GRP cable trays are utilized to support cables, suspending them safely within or outside buildings. This helps prevent damage to cables from external elements and provides an effective cable routing solution.
2. Cable Protection:
Cable trays offer physical protection to cables, guarding them against impacts or damage from external objects. This is
crucial for ensuring the reliability and durability of cable systems.
3. Cable Routing:
GRP cable trays are employed to organize and route cable systems effectively. They provide a clear and organized method for laying cables along specific paths, facilitating maintenance and management.
4. Corrosion Resistance:
GRP exhibits excellent corrosion resistance, making cable trays suitable for harsh environmental conditions such as dampness, corrosive atmospheres, or chemical exposure.
5. Lightweight Design:
The lightweight and high-strength nature of GRP materials make cable trays easy to install. This is essential for quickly arranging cable systems both indoors and outdoors.
6. Electromagnetic Transparency:
GRP is electromagnetically transparent, meaning it does not interfere with electromagnetic signals in cable systems. This contributes to maintaining the performance of the cable system.
In summary, GRP cable trays serve the purposes of providing cable support, protection, and routing, with additional advantages such as corrosion resistance, lightweight design, and electromagnetic transparency. These characteristics make them a commonly used material in cable systems.
Related Product
FRP Handrail/Fence/Guardrail
FRP Stair Step Ladder With Handrail
FRP Step Ladders
FRP Support Beam For Grating Floor
FRP Structural Profiles
FRP Molded Grating
Product packaging
FRP beam packing way have: woven bag, pallets, cartons, Iron frame, etc.
Loading Port: Qingdao, Shanghai
Company Profile
Who are we?
Due to environmental policies, Zhengzhou Yalong Putex Composite Materials Co., Ltd. that established in 1994 relocated to Xihua County, Zhoukou in 2022. Subsequently, affected by local tax policies, the company registered a new legal entity, Henan Hongji Composite Materials Co.,Ltd. Starting from 2023, the company gradually conducted its business under the name of the new legal entity. Simultaneously, thecompany introduced new production equipment to enhance production capabilities and better serve customers.
What do we do?
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Pultrusion Production Line
Raw materials
Where are we?
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Exhibition
Shanghai AQUA Tech Fair
2013 Canton Fair
2011 Canton fair
2010 Canton fair
2010 China composite fair
2007 China composite fair
Customer Photos
We have been engaged in export trade since 2005, supplying our products to over 30 countries across North America, Central and South America, Europe, Australia, Southeast Asia, Africa, and more. Our products are known for stable quality, competitive pricing, welcome worldwide customer contact.
