Insulated Ladders Glass Reinforced Plastic Cable Tray Bridge for Electrical Insulation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP cable tray |
| Model Number: | fiberglass c channel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $10.00/meters >=1000 meters |
|
Detail Information |
|||
| Application: | Insulated Ladders | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Color: | As Requirement | ||
Product Description
Products Description

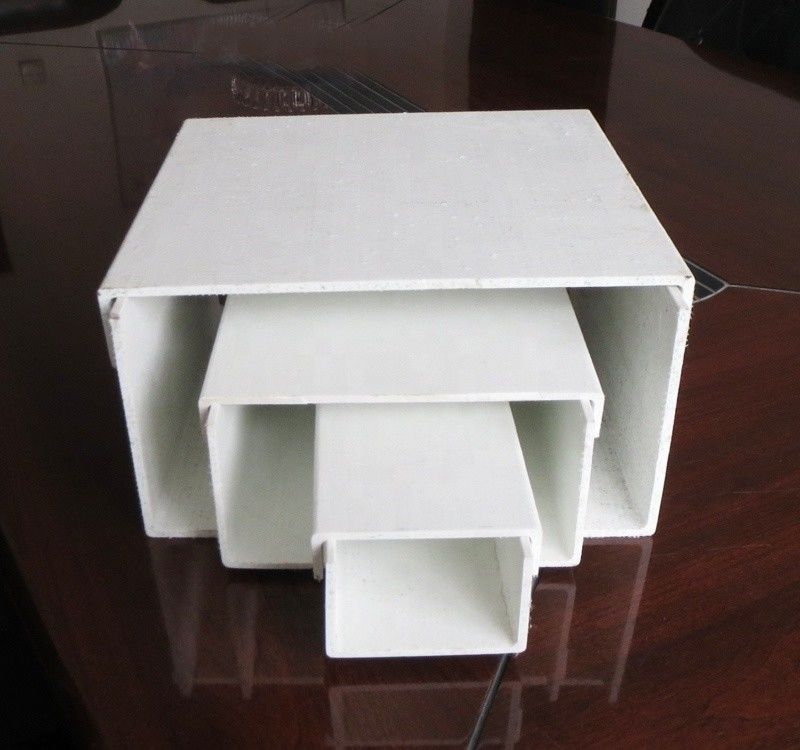

Hongji FRP channel cable tray have 100mm, 200mm, 300mm wide for choosing.
item | part name | Size(mm) | Weight(kg/m) |
100mm cable tray | box | 100×65×4.6 | 1.83 |
cover | 110×30×4.6 | 1.3 | |
200mm cable tray | box | 200×100×4.6 | 3.35 |
cover | 210×30×4.6 | 2.26 | |
300mm cable tray | box | 300×150×5.6 | 6.2 |
cover | 312×50×5.6 | 4.26 |
Fiberglass channel profiles simple instruction:
Resin type: Ortho-type resin, ISO resin, vinyl resin
Colors: red, white, grey, yellow, orange, etc.
length: 0.5m to 11.6m, cut as requirement
MOQ: 1000 meters
Lead time: 7 to15 days for order less than 5000 meters.
other FRP channel szie list ( Ax B x t mm) | ||||||
18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 | |||
55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 | |||
63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 | |||
76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 | |||
80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 | |||
84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 180x50x6 | |||
FRP channel advantages
1. Corrosion Resistance: Fiberglass channel profiles exhibit excellent corrosion resistance, withstanding chemical corrosion, humid environments, and other corrosive media, ensuring long-term stability in harsh conditions.2. Lightweight and High Strength: Fiberglass is a lightweight yet high-strength material, providing sufficient strength while reducing the self-weight of structures, making it easy to transport and install.
3. Insulation Performance: Fiberglass is an insulating material, non-conductive to electricity. Therefore, channel profiles are suitable for applications requiring electrical insulation, such as maintenance of electrical equipment and cable supports.
4. Abrasion Resistance: Fiberglass typically has good abrasion resistance, maintaining a smooth and stable surface during extended use.
5. UV Resistance: Fiberglass channel profiles have strong resistance to UV radiation, maintaining color stability over prolonged outdoor exposure.
6. Customization: Fiberglass channel profiles can be customized to meet specific project requirements, including different sizes, shapes, and colors.
7. Easy Installation and Maintenance: Due to their lightweight nature and resistance to corrosion, channel profiles are easy to install and maintain, reducing project costs and time.
FRP cable tray profiles Applications:
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
Product packaging
FRP beam packing way have: woven bag, pallets, cartons, Iron frame, etc.
Loading Port: Qingdao, Shanghai
Company Profile
Who are we?
Due to environmental policies, Zhengzhou Yalong Putex Composite Materials Co., Ltd. that established in 1994 relocated to Xihua County, Zhoukou in 2022. Subsequently, affected by local tax policies, the company registered a new legal entity, Henan Hongji Composite Materials Co.,Ltd. Starting from 2023, the company gradually conducted its business under the name of the new legal entity. Simultaneously, thecompany introduced new production equipment to enhance production capabilities and better serve customers.
What do we do?
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Pultrusion Production Line
Raw materials
Where are we?
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Exhibition
Shanghai AQUA Tech Fair
2013 Canton Fair
2011 Canton fair
2010 Canton fair
2010 China composite fair
2007 China composite fair
Customer Photos
We have been engaged in export trade since 2005, supplying our products to over 30 countries across North America, Central and South America, Europe, Australia, Southeast Asia, Africa, and more. Our products are known for stable quality, competitive pricing, welcome worldwide customer contact.
