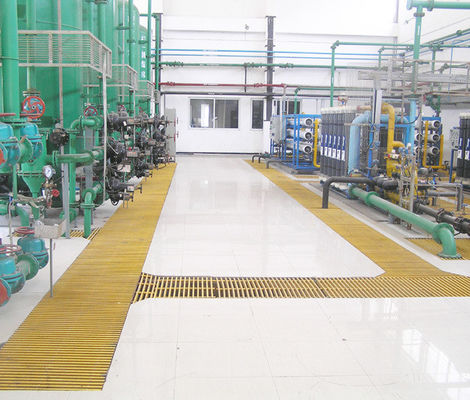

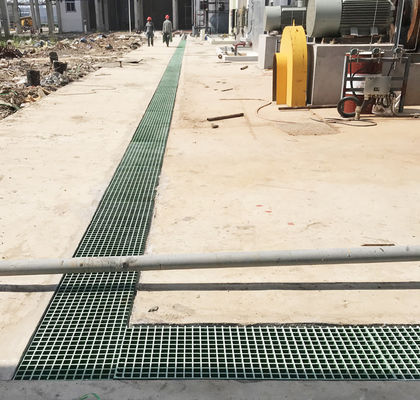

Fiberglass Trench Drain Cover Grating Walkway for Chemical Plant Wastewater Treatment
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP drain cover |
| Model Number: | frp composite grating |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 kilograms |
|---|---|
| Price: | $2.50/kilograms >=1000 kilograms |
|
Detail Information |
|||
| Application: | Fiberglass Trench Drain Cover | Surface Treatment: | Anti-slip |
|---|---|---|---|
| Technique: | Pultruded | Processing Service: | Cutting |
| Material: | FRP | Open Area: | 40% 80% |
Product Description
Products Description

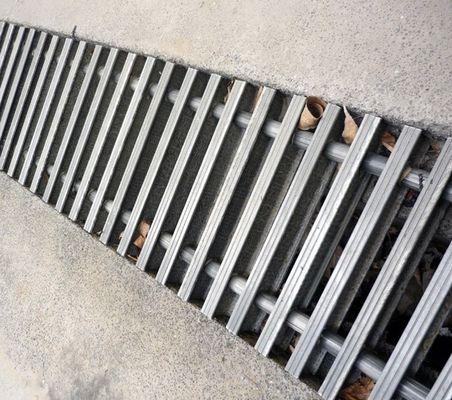

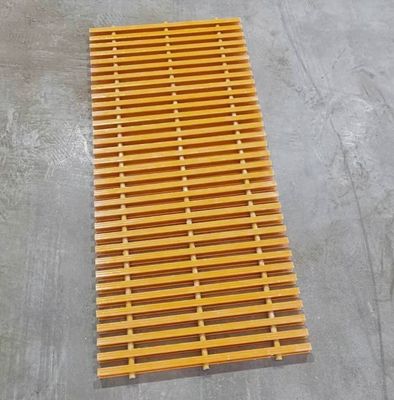

FRP trench drain grating is a grating made of composite materials, including fiberglass and resin.

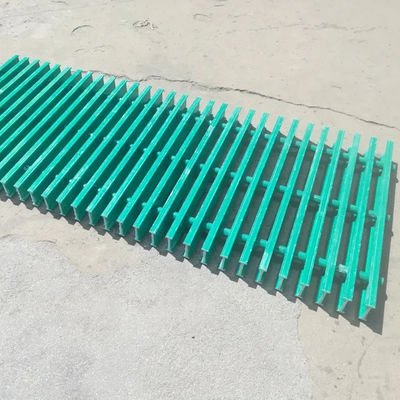

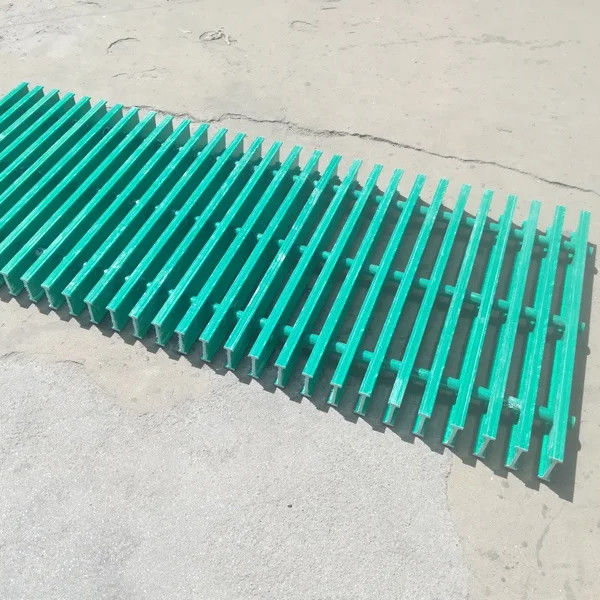

1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
Grating clamps are available.
Pultruded grating superior features compare with molded grating
1. Corrosion resistant: resist most acids, caustics and salts
2. Strength: 2 to 3 times stronger than molded grating, suitable for wide support span, carry great load bearing
3. Impact resistance: The 65% glass to 35% resin ratio of pultruded grating provides twice the stiffness of molded grating, high ultimate strength prevents impact damage
Pultruded grating superior features compare with steel grating
* Corrosion resistant: resists most acid, caustics and salts
* Safety: low electrical conductivity, non-skid surface
* Lightweight: 1/3 the weight of steel
* Easy for transport and filed fabricated
1. Corrosion resistant: resist most acids, caustics and salts
2. Strength: 2 to 3 times stronger than molded grating, suitable for wide support span, carry great load bearing
3. Impact resistance: The 65% glass to 35% resin ratio of pultruded grating provides twice the stiffness of molded grating, high ultimate strength prevents impact damage
Pultruded grating superior features compare with steel grating
* Corrosion resistant: resists most acid, caustics and salts
* Safety: low electrical conductivity, non-skid surface
* Lightweight: 1/3 the weight of steel
* Easy for transport and filed fabricated
Product Paramenters
Pultruded FRP grating specification list
the open area of pultruded FRP grating dimensions could be adjusted as requirement, below is popular size list
Art No. | “I”high A (mm) | “I"Top width B (mm) | "I" bottom width D (mm) | clearance C (mm) | open area | approx weight (kg/sqm） |
5025 | 25 | 30 | 30 | 30 | 50 | 10 |
4025 | 25 | 15 | 15 | 10 | 40 | 13.8 |
5025 | 25 | 15 | 15 | 15 | 50 | 11.9 |
6025 | 25 | 15 | 15 | 23 | 60 | 10 |
4038 | 38 | 15 | 15 | 10 | 40 | 20.5 |
5038 | 38 | 15 | 15 | 15 | 50 | 17.8 |
6038 | 38 | 15 | 15 | 23 | 60 | 14.8 |
6038ii | 38 | 15 | 15 | 23 | 60 | 19.2 |
4040 | 40 | 40 | 20 | 27 | 40 | 19.5 |
5040 | 40 | 40 | 20 | 40 | 50 | 17 |
6040 | 40 | 40 | 20 | 60 | 60 | 14 |
4040i | 40 | 30 | 30 | 20 | 40 | 14 |
5040i | 40 | 30 | 30 | 30 | 50 | 12 |
6040i | 40 | 30 | 30 | 45 | 60 | 10 |
6050 | 50 | 15 | 15 | 23 | 60 | 16 |
5050 | 50 | 15 | 15 | 15 | 50 | 22.5 |
4050 | 50 | 15 | 15 | 10 | 40 | 25.5 |
4058 | 58 | 15 | 15 | 10 | 40 | 32 |
5058 | 58 | 15 | 15 | 15 | 50 | 27 |
6058 | 58 | 15 | 15 | 23 | 60 | 22 |
4065 | 65 | 30 | 30 | 20 | 40 | 17 |
5065 | 65 | 30 | 30 | 30 | 50 | 15 |
6060 | 60 | 30 | 30 | 45 | 60 | 12 |
the structure of 4025 FRP grating
the clearance and crossbar distance could be adjusted
Packing And Shipping
Packing type: pallets, wood carton, etc. also could packing according to customer's requirement.
Shipping： land shipping, air shipping, railway shipping, express delivery(length can't over 2.5m)
