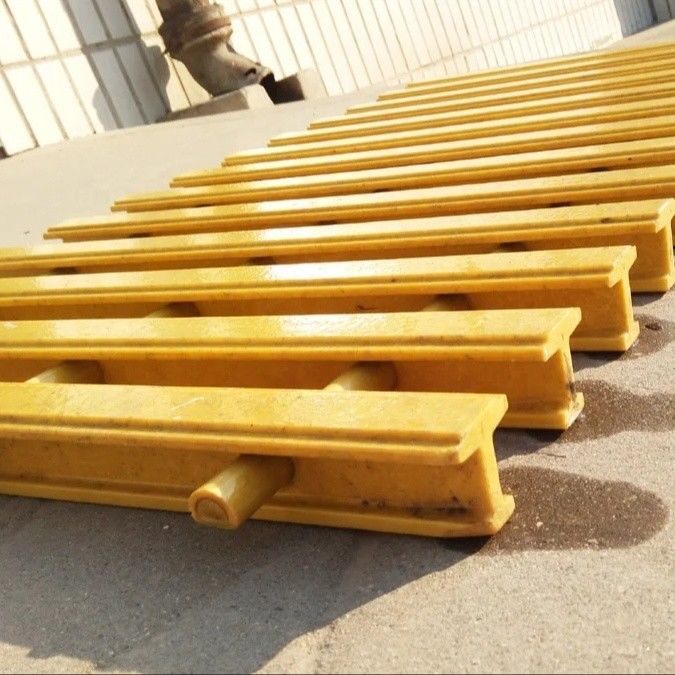

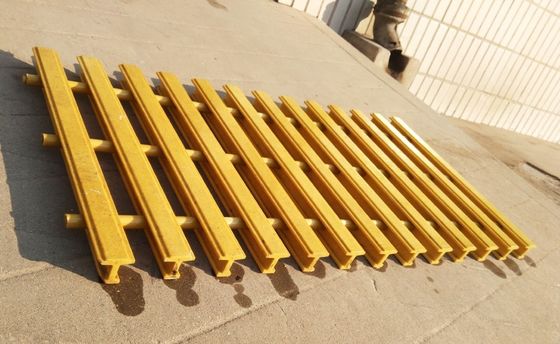

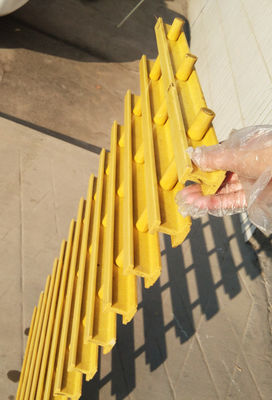

FRP Pultruded Grating T Bars for Slip-Resistant and Fire-Retardant Flooring Solutions
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP I bar grating |
| Model Number: | frp grating panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 kilograms |
|---|---|
| Price: | $2.50/kilograms >=1000 kilograms |
|
Detail Information |
|||
| Application: | FRP Grating Walkway Panel | Surface Treatment: | Anti-slip |
|---|---|---|---|
| Technique: | Pultruded | Processing Service: | Cutting |
| Material: | FRP | Open Area: | 40% 80% |
Product Description
Product Paramenters
Pultruded FRP grating specification list
the open area of pultruded FRP grating dimensions could be adjusted as requirement, below is popular size list
Art No. | “I”high A (mm) | “I"Top width B (mm) | "I" bottom width D (mm) | clearance C (mm) | open area | approx weight (kg/sqm） |
5025 | 25 | 30 | 30 | 30 | 50 | 10 |
4025 | 25 | 15 | 15 | 10 | 40 | 13.8 |
5025 | 25 | 15 | 15 | 15 | 50 | 11.9 |
6025 | 25 | 15 | 15 | 23 | 60 | 10 |
4038 | 38 | 15 | 15 | 10 | 40 | 20.5 |
5038 | 38 | 15 | 15 | 15 | 50 | 17.8 |
6038 | 38 | 15 | 15 | 23 | 60 | 14.8 |
6038ii | 38 | 15 | 15 | 23 | 60 | 19.2 |
4040 | 40 | 40 | 20 | 27 | 40 | 19.5 |
5040 | 40 | 40 | 20 | 40 | 50 | 17 |
6040 | 40 | 40 | 20 | 60 | 60 | 14 |
4040i | 40 | 30 | 30 | 20 | 40 | 14 |
5040i | 40 | 30 | 30 | 30 | 50 | 12 |
6040i | 40 | 30 | 30 | 45 | 60 | 10 |
6050 | 50 | 15 | 15 | 23 | 60 | 16 |
5050 | 50 | 15 | 15 | 15 | 50 | 22.5 |
4050 | 50 | 15 | 15 | 10 | 40 | 25.5 |
4058 | 58 | 15 | 15 | 10 | 40 | 32 |
5058 | 58 | 15 | 15 | 15 | 50 | 27 |
6058 | 58 | 15 | 15 | 23 | 60 | 22 |
4065 | 65 | 30 | 30 | 20 | 40 | 17 |
5065 | 65 | 30 | 30 | 30 | 50 | 15 |
6060 | 60 | 30 | 30 | 45 | 60 | 12 |
the structure of 4025 FRP grating
the clearance and crossbar distance could be adjusted
Products Description
Pultruded fiberglass grating materials are oftentimes used for walkways, sun-screens, decking, docks, ramps, and other public structures
1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
Grating clamps are available.
Fiberglass pultruded grating advantages:
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.
FRP grating applications:
* FRP Stair and Handrail systems
* Industrial platforms and walkways
* Marine structures
* Food Manufacturing Applications
* Fiberglass Baffle Walls
* Manhole Covers
* Fiberglass Louvers and Ridge Vents
* Ladder systems
* FRP Tank Covers
* Water & Wastewater Containment systems
* Sludge Dry Beds
* Trough Covers
* FRP Enclosures
* FRP ramps and crossovers
* Industrial platforms and walkways
* Marine structures
* Food Manufacturing Applications
* Fiberglass Baffle Walls
* Manhole Covers
* Fiberglass Louvers and Ridge Vents
* Ladder systems
* FRP Tank Covers
* Water & Wastewater Containment systems
* Sludge Dry Beds
* Trough Covers
* FRP Enclosures
* FRP ramps and crossovers
Chemical plant FRP grating trench drain cover
Chemical plant FRP grating walkway
FRP grating air conditioner screen
FRP grating for transformer substation
FRP grating walkway for ship decking
FRP grating stair step
Packing And Shipping
Packing type: pallets, wood carton, etc. also could packing according to customer's requirement.
Shipping： land shipping, air shipping, railway shipping, express delivery(length can't over 2.5m)
