Sturdy and Durable Pultruded FRP Structural Grating for Big Load Bearing Requirements
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | frp structural grating |
| Model Number: | frp structural grating |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 kilograms |
|---|---|
| Price: | $2.50/kilograms >=1000 kilograms |
|
Detail Information |
|||
| Application: | Frp Structural Grating | Surface Treatment: | Anti-slip |
|---|---|---|---|
| Technique: | Pultruded | Processing Service: | Cutting |
| Material: | FRP | Open Area: | 40% 80% |
Product Description
Products Description

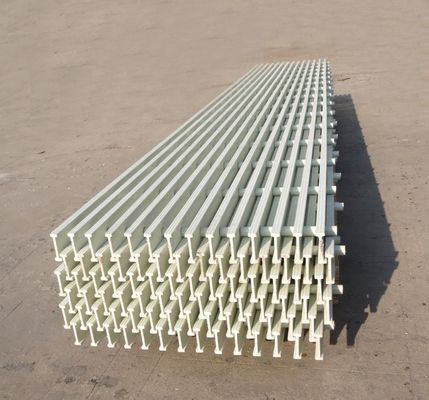

Pultruded frp structural grating instruction:
1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
Pultruded FRP grating specification list
the open area of pultruded FRP grating dimensions could be adjusted as requirement, below is popular size list
Art No. | “I”high A (mm) | “I"Top width B (mm) | "I" bottom width D (mm) | clearance C (mm) | open area | approx weight (kg/sqm） |
5025 | 25 | 30 | 30 | 30 | 50 | 10 |
4025 | 25 | 15 | 15 | 10 | 40 | 13.8 |
5025 | 25 | 15 | 15 | 15 | 50 | 11.9 |
6025 | 25 | 15 | 15 | 23 | 60 | 10 |
4038 | 38 | 15 | 15 | 10 | 40 | 20.5 |
5038 | 38 | 15 | 15 | 15 | 50 | 17.8 |
6038 | 38 | 15 | 15 | 23 | 60 | 14.8 |
6038ii | 38 | 15 | 15 | 23 | 60 | 19.2 |
4040 | 40 | 40 | 20 | 27 | 40 | 19.5 |
5040 | 40 | 40 | 20 | 40 | 50 | 17 |
6040 | 40 | 40 | 20 | 60 | 60 | 14 |
4040i | 40 | 30 | 30 | 20 | 40 | 14 |
5040i | 40 | 30 | 30 | 30 | 50 | 12 |
6040i | 40 | 30 | 30 | 45 | 60 | 10 |
6050 | 50 | 15 | 15 | 23 | 60 | 16 |
5050 | 50 | 15 | 15 | 15 | 50 | 22.5 |
4050 | 50 | 15 | 15 | 10 | 40 | 25.5 |
4058 | 58 | 15 | 15 | 10 | 40 | 32 |
5058 | 58 | 15 | 15 | 15 | 50 | 27 |
6058 | 58 | 15 | 15 | 23 | 60 | 22 |
4065 | 65 | 30 | 30 | 20 | 40 | 17 |
5065 | 65 | 30 | 30 | 30 | 50 | 15 |
6060 | 60 | 30 | 30 | 45 | 60 | 12 |
the structure of 4025 FRP grating
the clearance and crossbar distance could be adjusted
Grating clamps are available.
Fiberglass pultruded grating advantages:
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.

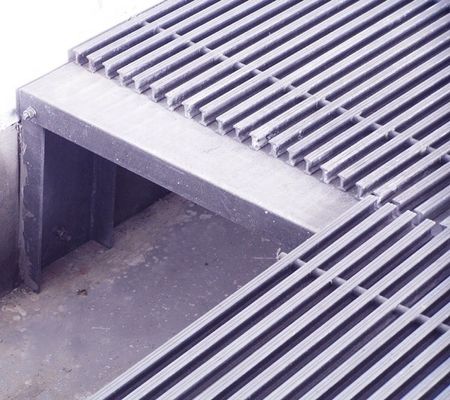

Pultruded FRP structural grating commonly used in industrial facilities, chemical plants, marine engineering, bridges, docks, and other areas.
Its excellent characteristics make it suitable for various harsh environments, capable of bearing heavy loads and providing a durable lifespan.
Related Product
FRP Handrail/Fence/Guardrail

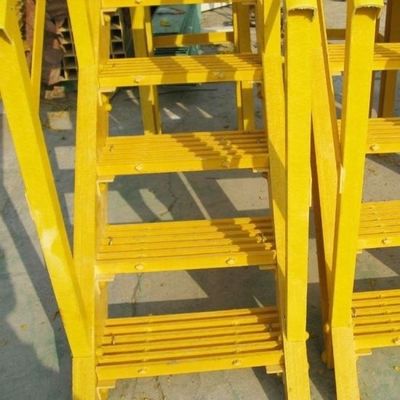

FRP Stair Step Ladder With Handrail
FRP Step Ladders
FRP Support Beam For Grating Floor
FRP Structural Profiles
FRP Molded Grating
Antislip FRP Decking Strip
FRP Handrail Fittings
FRP Cable Tray
Packing And Shipping
Packing type: pallets, wood carton, etc. also could packing according to customer's requirement.
Shipping： land shipping, air shipping, railway shipping, express delivery(length can't over 2.5m)
Company Profile
Who are we?
Due to environmental policies, Zhengzhou Yalong Putex Composite Materials Co., Ltd. that established in 1994 relocated to Xihua County, Zhoukou in 2022. Subsequently, affected by local tax policies, the company registered a new legal entity, Henan Hongji Composite Materials Co.,Ltd. Starting from 2023, the company gradually conducted its business under the name of the new legal entity. Simultaneously, thecompany introduced new production equipment to enhance production capabilities and better serve customers.
What do we do?
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Pultrusion Production Line
Raw materials
Where are we?
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
