Product Details:

Place of Origin: Henan, China
Brand Name: frp decking board
Model Number: frp decking board

Payment & Shipping Terms:

Minimum Order Quantity: 1000 kilograms
Price: $2.50/kilograms >=1000 kilograms
Get Best Price Contact Now

Detail Information
Application: Frp Decking Board Surface Treatment: Smooth Or Gritted
Technique: Pultruded Processing Service: Cutting
Material: FRP Open Area: 40% 80%

Product Description

Product Paramenters
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 0
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 1

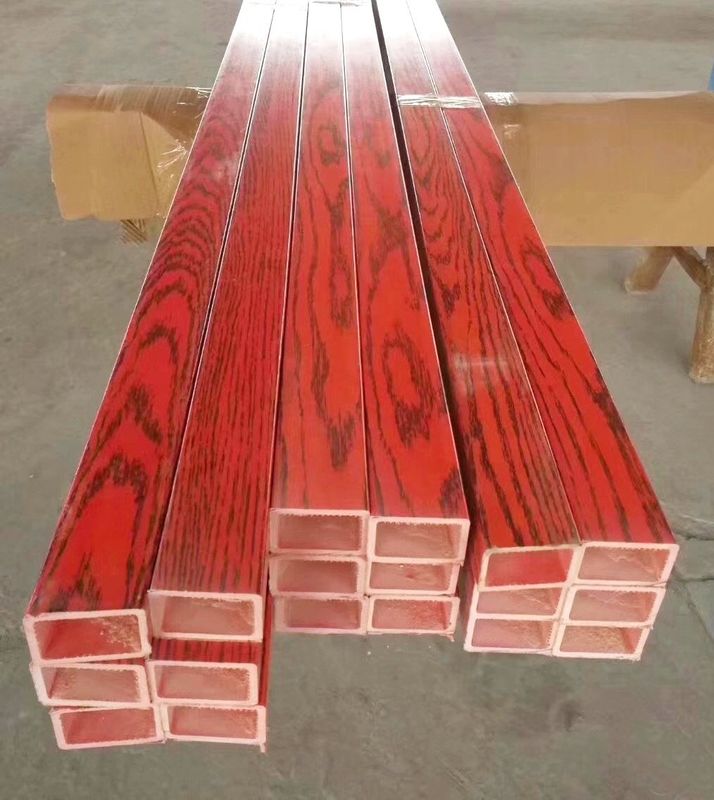

Customized wood grained floor board/panel as customer requirement
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 2
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 3
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 4

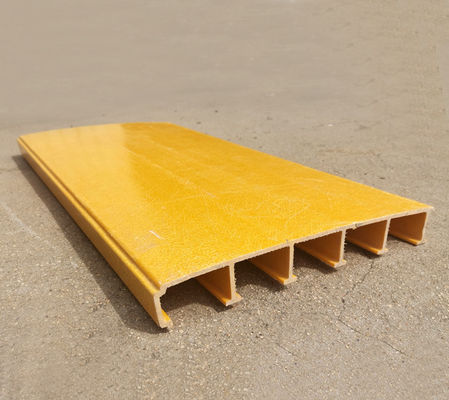

FRP grating decking panel
300mm wide, 40mm high, 4mm thickness, no limiation for length
surface could be smooth or gritted skid resistant
Applications: drain cover, walkway, etc.
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 5
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 6
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 7
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 8
Pultruded FRP grating specification list
the open area of pultruded FRP grating dimensions could be adjusted as requirement, below is popular size list
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 9
Art No.
“I”high A
(mm)
“I"Top width B
(mm)
"I" bottom width D (mm)
clearance C
(mm)
open area
approx weight
(kg/sqm）
5025
25
30
30
30
50
10
4025
25
15
15
10
40
13.8
5025
25
15
15
15
50
11.9
6025
25
15
15
23
60
10
4038
38
15
15
10
40
20.5
5038
38
15
15
15
50
17.8
6038
38
15
15
23
60
14.8
6038ii
38
15
15
23
60
19.2
4040
40
40
20
27
40
19.5
5040
40
40
20
40
50
17
6040
40
40
20
60
60
14
4040i
40
30
30
20
40
14
5040i
40
30
30
30
50
12
6040i
40
30
30
45
60
10
6050
50
15
15
23
60
16
5050
50
15
15
15
50
22.5
4050
50
15
15
10
40
25.5
4058
58
15
15
10
40
32
5058
58
15
15
15
50
27
6058
58
15
15
23
60
22
4065
65
30
30
20
40
17
5065
65
30
30
30
50
15
6060
60
30
30
45
60
12
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 10

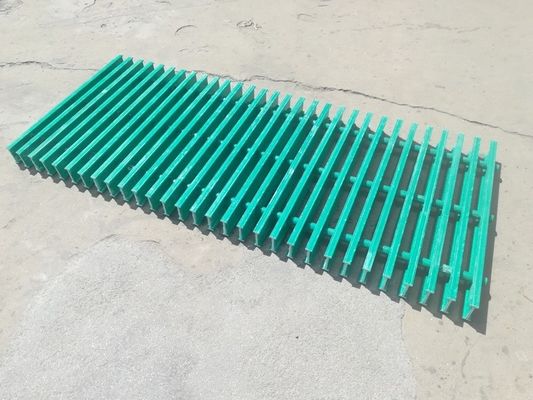

the structure of 4025 FRP grating
the clearance and crossbar distance could be adjusted
Products Description
Pultruded fiberglass grating materials are oftentimes used for walkways, sun-screens, decking, docks, ramps, and other public structures
1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 11
Fiberglass pultruded grating advantages:
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
 2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
 5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.

FRP grating applications:

* FRP Stair and Handrail systems
* Industrial platforms and walkways
* Marine structures
* Food Manufacturing Applications
* Fiberglass Baffle Walls
* Manhole Covers
* Fiberglass Louvers and Ridge Vents
* Ladder systems
* FRP Tank Covers
* Water & Wastewater Containment systems
* Sludge Dry Beds
* Trough Covers
* FRP Enclosures
* FRP ramps and crossovers
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 12
Chemical plant FRP grating trench drain cover
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 13
Chemical plant FRP grating walkway
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 14
FRP grating air conditioner screen
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 15
FRP grating for transformer substation
Related Product
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 16
FRP Handrail/Fence/Guardrail
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 17
FRP Stair Step Ladder With Handrail
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 18
FRP Step Ladders
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 19
FRP Support Beam For Grating Floor
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 20
FRP Structural Profiles
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 21
FRP Molded Grating
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 22
Antislip FRP Decking Strip
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 23
FRP Handrail Fittings
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 24
FRP Cable Tray
Packing And Shipping
Packing type: pallets, wood carton, etc. also could packing according to customer's requirement.
Shipping： land shipping, air shipping, railway shipping, express delivery(length can't over 2.5m)
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 25
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 26
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 27
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 28
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 29
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 30
Company Profile
Who are we?
Due to environmental policies, Zhengzhou Yalong Putex Composite Materials Co., Ltd. that established in 1994 relocated to Xihua County, Zhoukou in 2022. Subsequently, affected by local tax policies, the company registered a new legal entity, Henan Hongji Composite Materials Co.,Ltd. Starting from 2023, the company gradually conducted its business under the name of the new legal entity. Simultaneously, thecompany introduced new production equipment to enhance production capabilities and better serve customers.
What do we do?
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Pultrusion Production Line
High Strength Fiberglass Deck Board Panel with Wood Grained Finish 80% Open Area 31
Where are we?
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Customer Photos
We have been engaged in export trade since 2005, supplying our products to over 30 countries across North America, Central and South America, Europe, Australia, Southeast Asia, Africa, and more. Our products are known for stable quality, competitive pricing, welcome worldwide customer contact.
