Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases

Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases

Product Details:

Place of Origin: Henan, China
Brand Name: fiberglass stair grating
Model Number: fiberglass stair grating

Payment & Shipping Terms:

Minimum Order Quantity: 1000 kilograms
Price: $2.50/kilograms >=1000 kilograms
Get Best Price Contact Now

Detail Information
Application: Frp Structural Grating Surface Treatment: Anti-slip
Technique: Pultruded Processing Service: Cutting
Material: FRP Open Area: 40% 80%

Product Description

Products Description
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 0

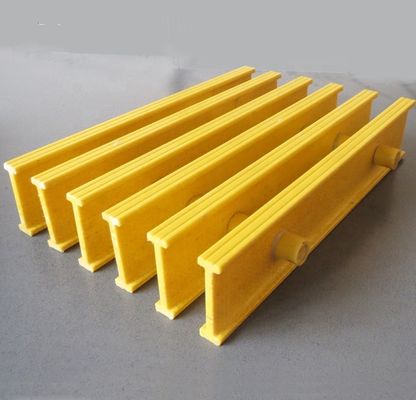

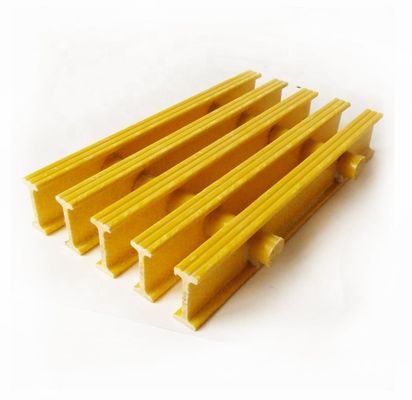

Pultruded frp stair grating instruction:
1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.
2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
3-Easy to install;
4-Can be cut at any lengths you need; open area is decided by customer
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 1
Pultruded FRP grating specification list
the open area of pultruded FRP grating dimensions could be adjusted as requirement, below is popular size list
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 2
Art No.
“I”high A
(mm)
“I"Top width B
(mm)
"I" bottom width D (mm)
clearance C
(mm)
open area
approx weight
(kg/sqm）
5025
25
30
30
30
50
10
4025
25
15
15
10
40
13.8
5025
25
15
15
15
50
11.9
6025
25
15
15
23
60
10
4038
38
15
15
10
40
20.5
5038
38
15
15
15
50
17.8
6038
38
15
15
23
60
14.8
6038ii
38
15
15
23
60
19.2
4040
40
40
20
27
40
19.5
5040
40
40
20
40
50
17
6040
40
40
20
60
60
14
4040i
40
30
30
20
40
14
5040i
40
30
30
30
50
12
6040i
40
30
30
45
60
10
6050
50
15
15
23
60
16
5050
50
15
15
15
50
22.5
4050
50
15
15
10
40
25.5
4058
58
15
15
10
40
32
5058
58
15
15
15
50
27
6058
58
15
15
23
60
22
4065
65
30
30
20
40
17
5065
65
30
30
30
50
15
6060
60
30
30
45
60
12
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 3
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 4
the structure of 4025 FRP grating
the clearance and crossbar distance could be adjusted
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 5
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 6
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 7
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 8
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 9
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 10
Grating clamps are available.
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 11
Fiberglass pultruded grating advantages:
1. High Strength: Fiberglass pultruded grating exhibits outstanding strength, capable of bearing significant loads, making it suitable for applications with high strength requirements.
 2. Lightweight Design: Compared to traditional metal gratings, fiberglass pultruded grating is lightweight, facilitating easier installation and maintenance and reducing the overall burden on the structure.
3. Corrosion Resistance: Fiberglass possesses excellent corrosion resistance, making pultruded grating resistant to harsh environments, including humidity, chemicals, and salt spray, thereby extending its service life.
4. Insulation Properties: Fiberglass is a non-conductive material, providing excellent electrical insulation. This feature is beneficial in applications where electrical insulation is required.
 5. Customizability: Fiberglass pultruded grating can be customized to meet specific requirements, including different sizes, colors, and shapes, allowing adaptation to various design specifications.
6. Low Maintenance Costs: Due to its corrosion resistance and aging resistance, fiberglass pultruded grating typically requires minimal maintenance, reducing overall maintenance costs and frequency.
Pultruded FRP structural grating commonly used in industrial facilities, chemical plants, marine engineering, bridges, docks, and other areas.
Its excellent characteristics make it suitable for various harsh environments, capable of bearing heavy loads and providing a durable lifespan.
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 12
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 13
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 14
Related Product
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 15
FRP Handrail/Fence/Guardrail
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 16
FRP Stair Step Ladder With Handrail
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 17
FRP Step Ladders
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 18
FRP Support Beam For Grating Floor
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 19
FRP Structural Profiles
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 20
FRP Molded Grating
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 21
Antislip FRP Decking Strip
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 22
FRP Handrail Fittings
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 23
FRP Cable Tray
Packing And Shipping
Packing type: pallets, wood carton, etc. also could packing according to customer's requirement.
Shipping： land shipping, air shipping, railway shipping, express delivery(length can't over 2.5m)
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 24
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 25
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 26
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 27
Anti-Slip FRP Pultruded Fiberglass Plastic Stair Grating for Heavy-Duty Staircases 28
