Advanced Pultrusion Technique for Durable FRP Grating/Ladder Rail/Fence Structures
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP pultruded PROFILE |
| Model Number: | fiberglass reinforced plastic profiles |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $3.00/meters >=1000 meters |
|
Detail Information |
|||
| Application: | Structures | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Color: | As Requirement | ||
Product Description
Products Description
FRP profiles, or Fiberglass Reinforced Plastic profiles, are structural components made from a combination of fiberglass and a polymer resin matrix.
These profiles are manufactured through a pultrusion process, where continuous glass fibers are impregnated with the resin and pulled through a heated die to form the desired shape.
FRP profiles could be assembled or processing to various FRP product, such as grating, handrail, ladders, stair step ladders, platform, etc.
Raw Materials and pultrusion lines
Standard FRP profiles size list | ||||||
玻纤棒frp rod | ||||||
6.9mm | 7.3mm | 7.9mm | 8.5mm | |||
9.5mm | 10mm | 11mm | 12mm | |||
12.7mm | 16mm | 18mm | 25mm | |||

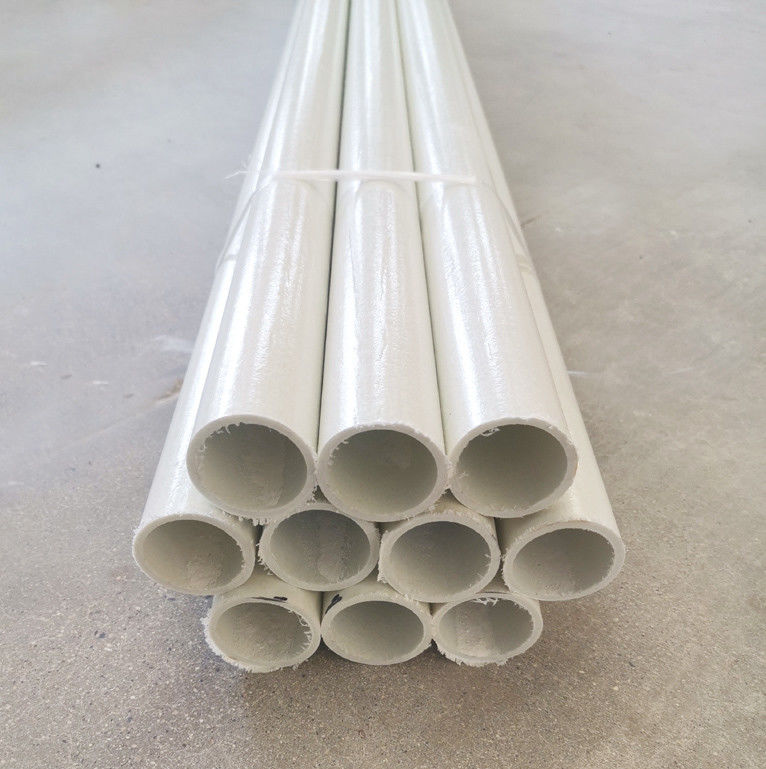

玻璃钢圆管frp round tube | ||||||
18x11mm | 25x2mm | 30x3mm | 30x2.4mm | |||
30x4mm | 40x3mm | 40x5mm | 45x3mm | |||
50x5mm | 50x4mm | 50x2.5mm | 51x3mm | |||
64×3.5 mm | 64×7.2mm | 76×6.4 mm | 89×3.2 mm | |||
89×5mm | 89×6.4 mm | 99×5 mm | 100×6.4mm | |||
114×3.2 mm | 114×5 mm | 114×6.4mm | 114×9.5mm | |||
150×3.2 mm | 150×5.4mm | 150×6.4 mm | 150×9.5 mm | |||
玻璃钢矩形管rectangular tube | ||||||
19X2.6mm | 20x13x2.2mm | 24.5x16x2.2mm | 35x22x3mm | |||
30x20x2x2.25mm | 30x20x2.5mm | 38×4mm | 50x30x4mm | |||
50x50x4mm | 60x32x3.5mm | 64x26x3.5mm | 65x31x4mm | |||
67x30x3mm | 65x62x4mm | 67x65x4mm | 73x65x4mm | |||
76x51x4mm | 110×50×4.5×4mm | |||||
玻璃钢槽钢Channel(mm) | ||||||
18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 | |||
55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 | |||
63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 | |||
76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 | |||
80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 | |||
84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 100×65×4.6 | |||
110×30×4.6 | 180x50x6 | 180x50x8 | 200×100×4.6 | |||
210×30×4.6 | 300×150×5.6 | 312×50×5.6 | ||||
玻璃钢工字钢I beam(mm) | ||||||
19×19×4 | 20x15x3.5 | 25×15×3.5 | 25×30×3.6 | |||
38×15×3.5×4 | 38×15×4.5×5.5 | 40×30×3.6 | 40*40x5 | |||
50x15x4 | 58×15×4.5×5 | 58×15×5×6 | 65×30×3.6 | |||
70×15×4.5×6 | 80×15×4.5×5 | 80×30×4. | 110×50×4 | |||
玻璃钢角钢Angle | ||||||
20x20x2 | 25x25x5mm | 30x25x3 | 40x40x5 | |||
35x30x3mm | 40x60x5 | 42x47x2.3 | 60x60x6 | |||
76x50x6.35 | 150x99x3 | |||||
玻璃钢平板Flat bar/plate | ||||||
30x4 | 40x4 | 43.2x16 | 45×16 | |||
50x3 | 64x6 | 147x3 | 150x4 | |||
254x3.5 | 280x3 | 646x3.5 | 770x3.5 | |||
796x5 | ||||||
D型波纹管 D ripple tube | 圆形波纹管round ripple tube | |||||
40*27*3 | 36*25 | 75*63 | 51*45 | |||
60*27*3 | ||||||
Fiberglass pultrusion product simple instruction:
Resin type: Ortho-type resin, ISO resin, vinyl resin
length: 0.5m to 11.6m, cut as requirement
MOQ: 1000 meters
Lead time: 7 to15 days for order less than 5000 meters.
Colors: red, white, grey, yellow, orange, blue, green etc.
FRP profile advantages
1. Corrosion Resistance: Fiberglass channel profiles exhibit excellent corrosion resistance, withstanding chemical corrosion, humid environments, and other corrosive media, ensuring long-term stability in harsh conditions.2. Lightweight and High Strength: Fiberglass is a lightweight yet high-strength material, providing sufficient strength while reducing the self-weight of structures, making it easy to transport and install.
3. Insulation Performance: Fiberglass is an insulating material, non-conductive to electricity. Therefore, channel profiles are suitable for applications requiring electrical insulation, such as maintenance of electrical equipment and cable supports.
4. Abrasion Resistance: Fiberglass typically has good abrasion resistance, maintaining a smooth and stable surface during extended use.
5. UV Resistance: Fiberglass channel profiles have strong resistance to UV radiation, maintaining color stability over prolonged outdoor exposure.
6. Customization: Fiberglass channel profiles can be customized to meet specific project requirements, including different sizes, shapes, and colors.
7. Easy Installation and Maintenance: Due to their lightweight nature and resistance to corrosion, channel profiles are easy to install and maintain, reducing project costs and time.
FRP profiles Applications:
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
Related Product
FRP Handrail/Fence/Guardrail
FRP Stair Step Ladder With Handrail
FRP Step Ladders
FRP Support Beam For Grating Floor
FRP Structural Profiles
FRP Molded Grating
Antislip FRP Decking Strip
FRP Handrail Fittings
FRP Cable Tray
Product packaging
FRP beam packing way have: woven bag, pallets, cartons, Iron frame, etc.
Loading Port: Qingdao, Shanghai
Company Profile
Who are we?
Due to environmental policies, Zhengzhou Yalong Putex Composite Materials Co., Ltd. that established in 1994 relocated to Xihua County, Zhoukou in 2022. Subsequently, affected by local tax policies, the company registered a new legal entity, Henan Hongji Composite Materials Co.,Ltd. Starting from 2023, the company gradually conducted its business under the name of the new legal entity. Simultaneously, thecompany introduced new production equipment to enhance production capabilities and better serve customers.
What do we do?
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Where are we?
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
