Smooth 6m Span GRP FRP Plastic Purlin for Roof Panel Support Frame High Load Capacity
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP plastic Purlin |
| Model Number: | fiberglass reinforced plastic profiles |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $15.00/meters >=1000 meters |
|
Detail Information |
|||
| Application: | Roof Panel Support Frame | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Color: | As Requirement | ||
Product Description
Products Description

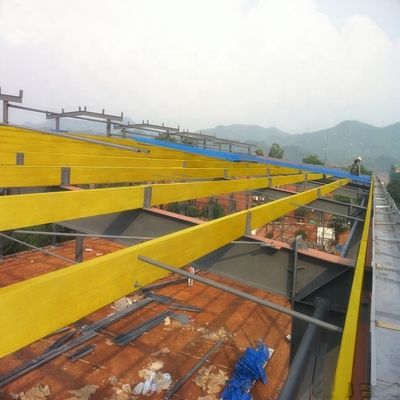

FRP (Fiberglass Reinforced Plastic) roof purlin is a lightweight, high-strength component used in building roofs.
FRP Purlin made from a blend of fiberglass and resin, it offers durability, corrosion resistance, and is easy to install. Typically used in industrial and commercial buildings, it supports roofing materials like metal sheets or fiberglass panels, ensuring roof stability and longevity.
Fiberglass tube profiles simple instruction:
Resin type: Ortho-type resin, ISO resin, vinyl resin
length: 0.5m to 11.6m, cut as requirement
MOQ: 1000 meters
Lead time: 7 to15 days for order less than 5000 meters.
Colors: red, white, grey, yellow, orange, blue, green etc.
FRP Purlin size list | ||
110x50x4.5x5mm | 160x55x5mm | 220x55x5mm |
FRP purlin profile advantages
Corrosion Resistance: Fiberglass purlins are highly resistant to corrosion, making them ideal for use in humid and corrosive environments.Lightweight: Compared to traditional metal purlins, fiberglass purlins are lightweight, making them easy to handle and install while reducing structural load.
Strength and Rigidity: Despite being lightweight, fiberglass purlins offer excellent strength and rigidity, capable of supporting the weight of roof coverings and withstanding external environmental factors.
Insulation: Fiberglass purlins are non-conductive, providing good electrical insulation and reducing the risk of electrical
accidents.
Weather Resistance: Fiberglass purlins exhibit excellent weather resistance, able to withstand UV radiation, extreme temperatures, and harsh weather conditions.
Other Standard FRP profiles size list | ||||||
玻纤棒frp rod | ||||||
6.9mm | 7.3mm | 7.9mm | 8.5mm | |||
9.5mm | 10mm | 11mm | 12mm | |||
12.7mm | 16mm | 18mm | 25mm | |||
玻璃钢圆管frp round tube | ||||||
18x11mm | 25x2mm | 30x3mm | 30x2.4mm | |||
30x4mm | 40x3mm | 40x5mm | 45x3mm | |||
50x5mm | 50x4mm | 50x2.5mm | 51x3mm | |||
64×3.5 mm | 64×7.2mm | 76×6.4 mm | 89×3.2 mm | |||
89×5mm | 89×6.4 mm | 99×5 mm | 100×6.4mm | |||
114×3.2 mm | 114×5 mm | 114×6.4mm | 114×9.5mm | |||
150×3.2 mm | 150×5.4mm | 150×6.4 mm | 150×9.5 mm | |||
玻璃钢矩形管rectangular tube | ||||||
19X2.6mm | 20x13x2.2mm | 24.5x16x2.2mm | 35x22x3mm | |||
30x20x2x2.25mm | 30x20x2.5mm | 38×4mm | 50x30x4mm | |||
50x50x4mm | 60x32x3.5mm | 64x26x3.5mm | 65x31x4mm | |||
67x30x3mm | 65x62x4mm | 67x65x4mm | 73x65x4mm | |||
76x51x4mm | 110×50×4.5×4mm | |||||
玻璃钢槽钢Channel(mm) | ||||||
18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 | |||
55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 | |||
63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 | |||
76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 | |||
80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 | |||
84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 100×65×4.6 | |||
110×30×4.6 | 180x50x6 | 180x50x8 | 200×100×4.6 | |||
210×30×4.6 | 300×150×5.6 | 312×50×5.6 | ||||
玻璃钢工字钢I beam(mm) | ||||||
19×19×4 | 20x15x3.5 | 25×15×3.5 | 25×30×3.6 | |||
38×15×3.5×4 | 38×15×4.5×5.5 | 40×30×3.6 | 40*40x5 | |||
50x15x4 | 58×15×4.5×5 | 58×15×5×6 | 65×30×3.6 | |||
70×15×4.5×6 | 80×15×4.5×5 | 80×30×4. | 110×50×4 | |||
玻璃钢角钢Angle | ||||||
20x20x2 | 25x25x5mm | 30x25x3 | 40x40x5 | |||
35x30x3mm | 40x60x5 | 42x47x2.3 | 60x60x6 | |||
76x50x6.35 | 150x99x3 | |||||
玻璃钢平板Flat bar/plate | ||||||
30x4 | 40x4 | 43.2x16 | 45×16 | |||
50x3 | 64x6 | 147x3 | 150x4 | |||
254x3.5 | 280x3 | 646x3.5 | 770x3.5 | |||
796x5 | ||||||
D型波纹管 D ripple tube | 圆形波纹管round ripple tube | |||||
40*27*3 | 36*25 | 75*63 | 51*45 | |||
60*27*3 | ||||||
Related Product
FRP Handrail/Fence/Guardrail
FRP Stair Step Ladder With Handrail
FRP Step Ladders
FRP Support Beam For Grating Floor
FRP Structural Profiles
FRP Molded Grating
Product packaging

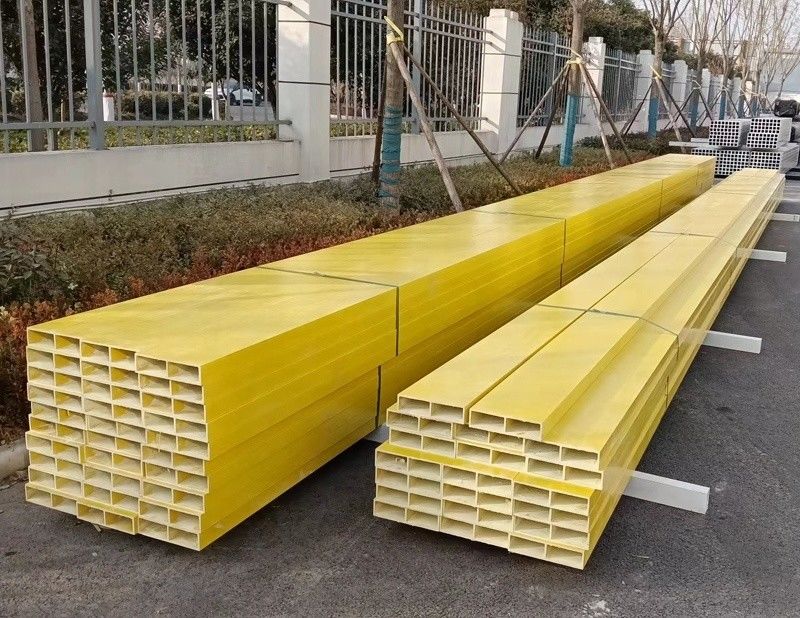

FRP beam packing way have: woven bag, pallets, cartons, Iron frame, etc.
Loading Port: Qingdao, Shanghai
Company Profile
Who are we?
Due to environmental policies, Zhengzhou Yalong Putex Composite Materials Co., Ltd. that established in 1994 relocated to Xihua County, Zhoukou in 2022. Subsequently, affected by local tax policies, the company registered a new legal entity, Henan Hongji Composite Materials Co.,Ltd. Starting from 2023, the company gradually conducted its business under the name of the new legal entity. Simultaneously, thecompany introduced new production equipment to enhance production capabilities and better serve customers.
What do we do?
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Pultrusion Production Line
Raw materials
Where are we?
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Exhibition
Shanghai AQUA Tech Fair
2013 Canton Fair
2011 Canton fair
2010 Canton fair
2010 China composite fair
2007 China composite fair
Customer Photos
We have been engaged in export trade since 2005, supplying our products to over 30 countries across North America, Central and South America, Europe, Australia, Southeast Asia, Africa, and more. Our products are known for stable quality, competitive pricing, welcome worldwide customer contact.
