FRP Frame GFRP Fiberglass Composite Structures Profile for Waste Water Treatment Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | fiberglass frame |
| Model Number: | fiberglass reinforced plastic profiles |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $3.00/meters >=1000 meters |
|
Detail Information |
|||
| Application: | Frp Frame | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Color: | As Requirement | ||
Product Description
Products Description
Customized FRP comosite structures are tailor-made structures crafted from fiberglass and resin materials.
They offer lightweight, durable, and corrosion-resistant properties, making them ideal for various applications.
These frames are versatile in design, accommodating specific shape and size requirements while maintaining structural integrity.

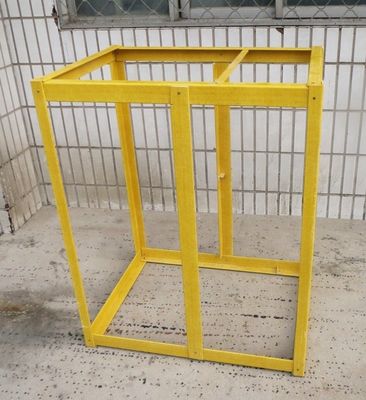

Fiberglass frame profiles simple instruction:
Resin type: Ortho-type resin, ISO resin, vinyl resin
length: 0.5m to 11.6m, cut as requirement
MOQ: 1000 meters
Lead time: 7 to15 days for order less than 5000 meters.
Colors: red, white, grey, yellow, orange, blue, green etc.
FRP frame profile advantages
1. Corrosion Resistance2. Lightweight
3. Strength and Rigidity
4. Insulation
5. Weather Resistance
They serve as reliable solutions for industries like construction, wastewater treatment, marine, chemical plant where traditional materials may not be suitable.

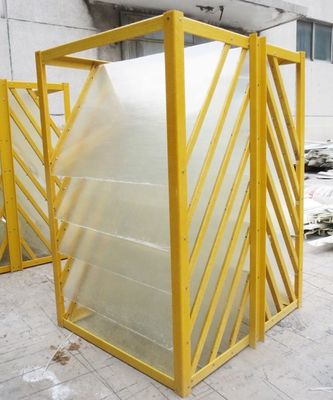

Below are FRP structural profiles applications in waste water treatment plant
Other Standard FRP profiles size list | ||||||
玻纤棒frp rod | ||||||
6.9mm | 7.3mm | 7.9mm | 8.5mm | |||
9.5mm | 10mm | 11mm | 12mm | |||
12.7mm | 16mm | 18mm | 25mm | |||
玻璃钢圆管frp round tube | ||||||
18x11mm | 25x2mm | 30x3mm | 30x2.4mm | |||
30x4mm | 40x3mm | 40x5mm | 45x3mm | |||
50x5mm | 50x4mm | 50x2.5mm | 51x3mm | |||
64×3.5 mm | 64×7.2mm | 76×6.4 mm | 89×3.2 mm | |||
89×5mm | 89×6.4 mm | 99×5 mm | 100×6.4mm | |||
114×3.2 mm | 114×5 mm | 114×6.4mm | 114×9.5mm | |||
150×3.2 mm | 150×5.4mm | 150×6.4 mm | 150×9.5 mm | |||

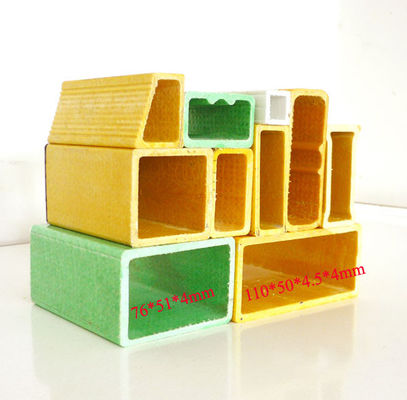

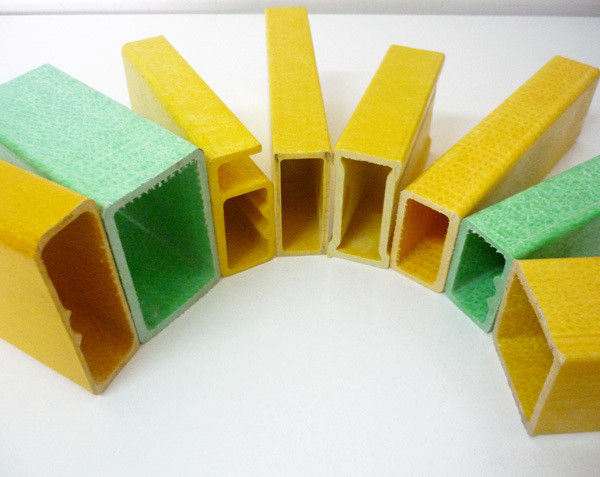

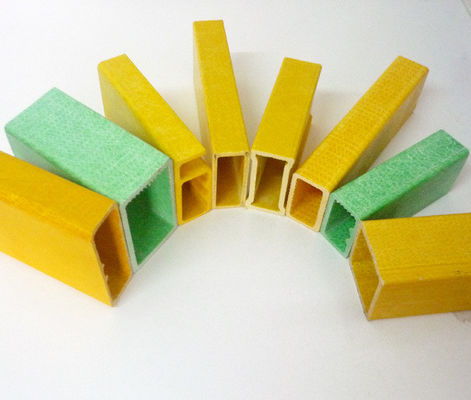

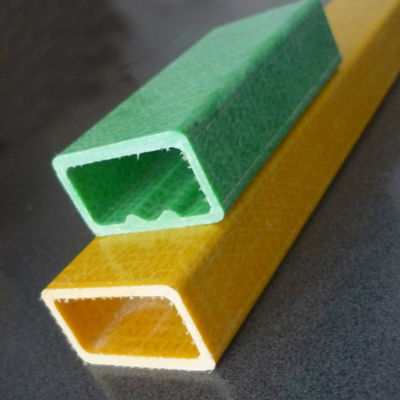

玻璃钢矩形管rectangular tube | ||||||
19X2.6mm | 20x13x2.2mm | 24.5x16x2.2mm | 35x22x3mm | |||
30x20x2x2.25mm | 30x20x2.5mm | 38×4mm | 50x30x4mm | |||
50x50x4mm | 60x32x3.5mm | 64x26x3.5mm | 65x31x4mm | |||
67x30x3mm | 65x62x4mm | 67x65x4mm | 73x65x4mm | |||
76x51x4mm | 110×50×4.5×4mm | |||||
玻璃钢槽钢Channel(mm) | ||||||
18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 | |||
55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 | |||
63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 | |||
76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 | |||
80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 | |||
84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 100×65×4.6 | |||
110×30×4.6 | 180x50x6 | 180x50x8 | 200×100×4.6 | |||
210×30×4.6 | 300×150×5.6 | 312×50×5.6 | ||||
玻璃钢工字钢I beam(mm) | ||||||
19×19×4 | 20x15x3.5 | 25×15×3.5 | 25×30×3.6 | |||
38×15×3.5×4 | 38×15×4.5×5.5 | 40×30×3.6 | 40*40x5 | |||
50x15x4 | 58×15×4.5×5 | 58×15×5×6 | 65×30×3.6 | |||
70×15×4.5×6 | 80×15×4.5×5 | 80×30×4. | 110×50×4 | |||
玻璃钢角钢Angle | ||||||
20x20x2 | 25x25x5mm | 30x25x3 | 40x40x5 | |||
35x30x3mm | 40x60x5 | 42x47x2.3 | 60x60x6 | |||
76x50x6.35 | 150x99x3 | |||||
玻璃钢平板Flat bar/plate | ||||||
30x4 | 40x4 | 43.2x16 | 45×16 | |||
50x3 | 64x6 | 147x3 | 150x4 | |||
254x3.5 | 280x3 | 646x3.5 | 770x3.5 | |||
796x5 | ||||||
D型波纹管 D ripple tube | 圆形波纹管round ripple tube | |||||
40*27*3 | 36*25 | 75*63 | 51*45 | |||
60*27*3 | ||||||
FRP frame profiles Applications:
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
Related Product
FRP Handrail/Fence/Guardrail
FRP Stair Step Ladder With Handrail
FRP Step Ladders
FRP Support Beam For Grating Floor
FRP Structural Profiles
FRP Molded Grating
Product packaging
FRP beam packing way have: woven bag, pallets, cartons, Iron frame, etc.
Loading Port: Qingdao, Shanghai
Company Profile
Who are we?
Due to environmental policies, Zhengzhou Yalong Putex Composite Materials Co., Ltd. that established in 1994 relocated to Xihua County, Zhoukou in 2022. Subsequently, affected by local tax policies, the company registered a new legal entity, Henan Hongji Composite Materials Co.,Ltd. Starting from 2023, the company gradually conducted its business under the name of the new legal entity. Simultaneously, thecompany introduced new production equipment to enhance production capabilities and better serve customers.
What do we do?
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer
satisfaction first, welcome contact us.
Pultrusion Production Line
Raw materials
Where are we?
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
Facotry address:
No. 166, Huacheng Road, Economic Development Zone, Xihua, Zhoukou, Henan province, China
Zhengzhou Office Address:
No.3 Xuesong Road, High and New Technology Industries Zone of Zhengzhou, 45001,China
Why Choose Us?
1. Factory direct sell， offer competitive price, customized product
2. We choose good quality raw materials to ensure product quality
3. Free samples are available
4. We offer 2 years goods warranty
5. 30 years of fiberglass pultrusion production and application experience
