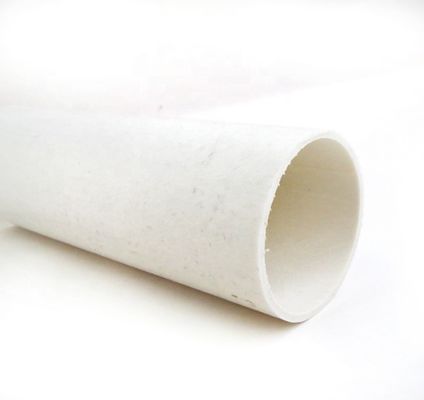

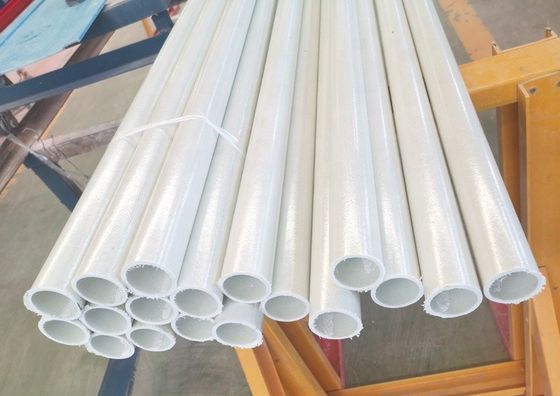

Lightweight Fiberglass Tube Antenna Poles Manufactured with FRP Pultrusion Technique
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | FRP tube antenna |
| Model Number: | fiberglass antenna tube |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $2.50/meters >=1000 meters |
|
Detail Information |
|||
| Application: | Insulated Antenna Tube | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Color: | As Requirement | ||
Product Description
l Raw Materials: o-type resin, ISO resin, vinyl resin.
l Process: Pultrusion, assembly
l Color: no limitation
l Length: no limitation
l Thickness: from 2mm to 50mm
l Diameter: 2mm ~ 50mm & Custom
FRP antenna tubes, with their lightweight, durability, corrosion resistance, and electromagnetic transparency, have become essential materials widely used in antenna support structures, providing reliable support and installation solutions for the telecommunications and communications industries.
Except FRP round tube, FRP channel also could used for antenna covering
FRP profiles as antenna covering adantages
-
1. Lightweight and Durable:
-
lighter than metal counterparts but still offer sufficient strength and durability to support antenna equipment and withstand environmental factors.
-
2. Corrosion Resistance:
-
Compared to metal, FRP materials are resistant to corrosion, ensuring structural integrity even in humid and rainy conditions, thus prolonging their lifespan.
-
3. Electromagnetic Transparency:
-
FRP materials have good electromagnetic transparency, meaning they do not interfere with signal transmission, thereby enhancing antenna performance and reception.
-
4. Ease of Processing:
-
FRP antenna tubes are easily processed, allowing for cutting and connection according to antenna equipment requirements, facilitating installation and adjustment.
| FRP Channel(mm) | |||
| 18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 |
| 55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 |
| 63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 |
| 76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 |
| 80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 |
| 84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 100×65×4.6 |
| 110×30×4.6 | 180x50x6 | 180x50x8 | 200×100×4.6 |
| 210×30×4.6 | 300×150×5.6 | 312×50×5.6 | |
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc.
| Other names | FRP antenna cover, fiberglass antenna cover, insulated antenna radome, antenna tower profiles. |
| Resin type | Ortho-type resin, ISO resin, Vinyl resin and Phenolic resin, advise us the tube application or work environment, we will recommend proper raw materials to customer |
| Colors | white, grey, yellow, red and orange are popular, could make as requirement |
| Lengths | 0.2m to 11.6m, made as customer's requirement |
| MOQ | 1000 meters or 1000kgs. |
| Lead time | if order smaller than 5000 meters, lead time is 7 to 15 days |
| Processing | Cutting, drilling, log painting, etc |
| Samples | Small quantity samples are free, customer need afford sample shipping cost |
| Goods warranty | 1 to 2 years, different product warranty is not total same. |
| Shipping | FRP profiles max length for 20' container is 5.85m and 11.6 for 40' container, could contact us for shipping cost checking |
Henan Hongji Composite Materials Co, Ltd located in Zhoukou city, Henan province, have 6 FRP pultrusion lines, specialized in manufacturing frp pultrusion profiles, FRP grating, handrail/fence/guardrail, ladder profiles, industrial window, shutters, various customized FRP product. We start export business since 2007, already exported to America, Europe, Africa, middle east, southeast Asia, Australia, etc.,over 30 countries. Henan Hongji offer stable product quality, rich experience in production and R&D, and timely after-sales service. We can customize production according to customer requirements and put customer satisfaction first, welcome contact us.
