Smooth and Sturdy Chemical Corrosion Pultruded FRP Fiberglass Reinforced Plastic Product
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | pultruded frp |
| Model Number: | fiberglass reinforced plastic profiles |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 meters |
|---|---|
| Price: | $3.00/meters >=1000 meters |
|
Detail Information |
|||
| Application: | Structures | Surface Treatment: | Smooth |
|---|---|---|---|
| Technique: | Pultrusion | Processing Service: | Cutting |
| Material: | FRP | Length: | 1m To 11.6m |
| Product: | Frp Grating, Handrail, Ladder Profile. | ||
Product Description
Products Description
Pultruded FRP (Fiber Reinforced Polymer) is a type of reinforced composite material typically composed of glass fibers and resin (such as polyester resin, epoxy resin, etc.).
It is produced by impregnating fibers with resin and curing and shaping them using molds on a continuous production line.
Pultruded FRP typically utilizes the pultrusion process, where fiber bundles, after being impregnated with resin, are extruded through a die under heat and pressure to form the desired cross-sectional shape.

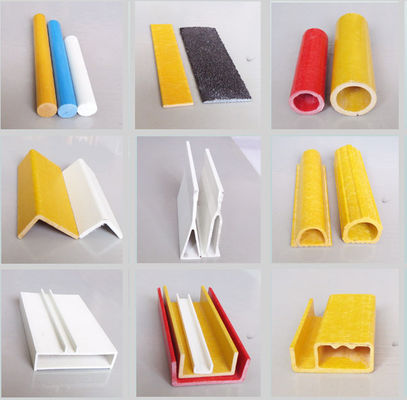

Pultruded frp product including but not limited below:
fiberglass rod, tube, channel, angle, I beam, window frame, shutter blade, otherstructural profile, etc.
Above profile generally be assembled to:
Fiberglass window and shutter
Pultruded Fiberglass Grating
Fiberglass guardrail handrail fence
Fiberglass guardrail handrail fence
Fiberglass ladders and stairs
Fiberglass Structure and support
Other customized product
Standard FRP profiles size list | ||||||
玻纤棒frp rod | ||||||
6.9mm | 7.3mm | 7.9mm | 8.5mm | |||
9.5mm | 10mm | 11mm | 12mm | |||
12.7mm | 16mm | 18mm | 25mm | |||
玻璃钢圆管frp round tube | ||||||
18x11mm | 25x2mm | 30x3mm | 30x2.4mm | |||
30x4mm | 40x3mm | 40x5mm | 45x3mm | |||
50x5mm | 50x4mm | 50x2.5mm | 51x3mm | |||
64×3.5 mm | 64×7.2mm | 76×6.4 mm | 89×3.2 mm | |||
89×5mm | 89×6.4 mm | 99×5 mm | 100×6.4mm | |||
114×3.2 mm | 114×5 mm | 114×6.4mm | 114×9.5mm | |||
150×3.2 mm | 150×5.4mm | 150×6.4 mm | 150×9.5 mm | |||
玻璃钢矩形管rectangular tube | ||||||
19X2.6mm | 20x13x2.2mm | 24.5x16x2.2mm | 35x22x3mm | |||
30x20x2x2.25mm | 30x20x2.5mm | 38×4mm | 50x30x4mm | |||
50x50x4mm | 60x32x3.5mm | 64x26x3.5mm | 65x31x4mm | |||
67x30x3mm | 65x62x4mm | 67x65x4mm | 73x65x4mm | |||
76x51x4mm | 110×50×4.5×4mm | |||||
玻璃钢槽钢Channel(mm) | ||||||
18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 | |||
55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 | |||
63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 | |||
76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 | |||
80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 | |||
84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 100×65×4.6 | |||
110×30×4.6 | 180x50x6 | 180x50x8 | 200×100×4.6 | |||
210×30×4.6 | 300×150×5.6 | 312×50×5.6 | ||||
玻璃钢工字钢I beam(mm) | ||||||
19×19×4 | 20x15x3.5 | 25×15×3.5 | 25×30×3.6 | |||
38×15×3.5×4 | 38×15×4.5×5.5 | 40×30×3.6 | 40*40x5 | |||
50x15x4 | 58×15×4.5×5 | 58×15×5×6 | 65×30×3.6 | |||
70×15×4.5×6 | 80×15×4.5×5 | 80×30×4. | 110×50×4 | |||
玻璃钢角钢Angle | ||||||
20x20x2 | 25x25x5mm | 30x25x3 | 40x40x5 | |||
35x30x3mm | 40x60x5 | 42x47x2.3 | 60x60x6 | |||
76x50x6.35 | 150x99x3 | |||||
玻璃钢平板Flat bar/plate | ||||||
30x4 | 40x4 | 43.2x16 | 45×16 | |||
50x3 | 64x6 | 147x3 | 150x4 | |||
254x3.5 | 280x3 | 646x3.5 | 770x3.5 | |||
796x5 | ||||||
D型波纹管 D ripple tube | 圆形波纹管round ripple tube | |||||
40*27*3 | 36*25 | 75*63 | 51*45 | |||
60*27*3 | ||||||
Fiberglass profiles simple instruction:
Resin type: Ortho-type resin, ISO resin, vinyl resin
length: 0.5m to 11.6m, cut as requirement
MOQ: 1000 meters
Lead time: 7 to15 days for order less than 5000 meters.
Colors: red, white, grey, yellow, orange, blue, green etc.
Pultruded FRP product Applications:
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
1. Chemical Equipment: Used in the manufacturing of chemical tanks, storage tanks, and pipelines, resisting corrosion from chemical substances.
2. Power Industry: As cable supports, cable trays, etc., providing support and insulation for electrical equipment.
3. Environmental Engineering: Utilized in sewage treatment facilities, wastewater troughs, etc., due to their corrosion
resistance.
4. Construction and Infrastructure: Used in the construction of bridges, platforms, walkways, etc., providing lightweight and high-strength structural support.
5. Transportation: Manufactured into lightweight yet high-strength components for transportation engineering, such as bridge railings.
6. Marine Engineering: Suitable for marine platforms, ship components, etc., resisting corrosion from seawater.
7. Food and Beverage Industry: Used in the manufacturing of storage tanks, conveying equipment, etc., due to their hygiene and corrosion resistance.
